  • Fiber optic adaptor FC/SC single mode
    ❤ Add to collection

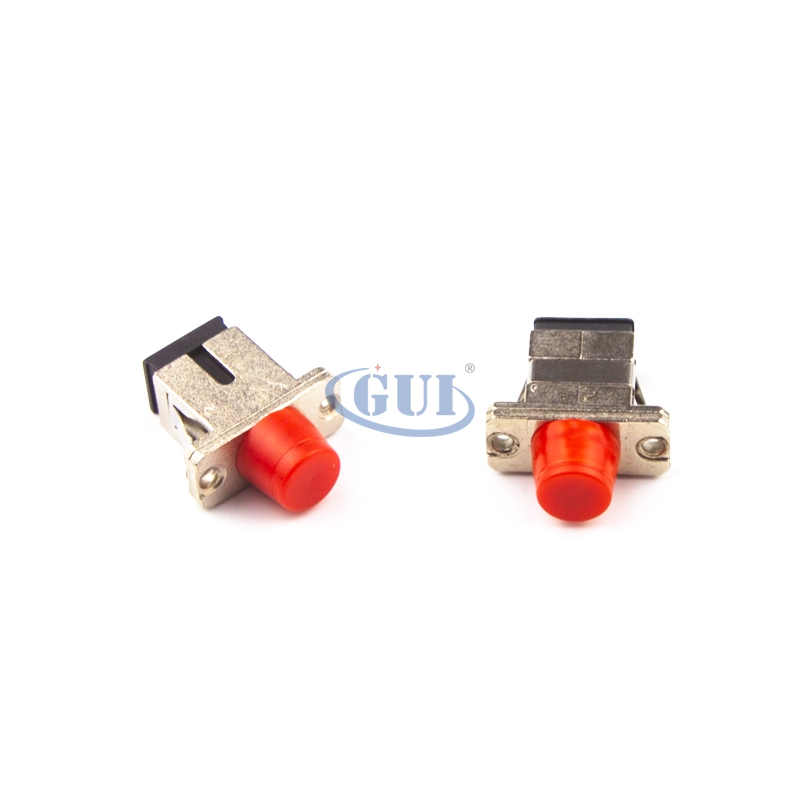

  • Fiber optic adaptor FC/SC single mode

    FC,SC
    UPC,APC
    Simplex
    single mode,multi mode
    • U.S.$0.22
      U.S.$0.00
      U.S.$0.22
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.00KG
    • Quantity:
    • (Inventory: 799992)
Description

Fiber optic adapters are designed to connect two fiber optic cables together. They come in versions to connect single fibers together (simplex), two fibers together (duplex), or sometimes four fibers together (quad).

Fiber optic adapters are typically connecting cables with similiar connectors (SC to SC, LC to LC, etc.). Some adapters, called "hybrid", accept different types of connectors (ST to SC, LC to SC, etc.). When the connectors have differing ferrule sizes (1.25mm to 2.5mm), as found in LC to SC adapters, the adapters are significantly more expensive because of a more complicated design/manufacturing process.

Most adapters are female on both ends, to connect two cables. Some are male-female, which typically plug into a port on a piece of equipment. This then allows the port to accept a different connector than for which it was originally designed. We discourage this use because we find the adapter extending from the equipment is subject to being bumped and breaking. Also, if not properly routed, the weight of the cable and connector hanging from the adapter may cause some misalignment and a degraded signal.

Features
• SC, FC, LC, ST, MU, E2000, MTRJ and Hybrid adapters are available.
• Precision Zirconia split sleeve
• Low insertion loss ≤0.2 dB
• Good repeatability and changeability
• Excellent temperature stability

Product Specification

Connector Type
FC-SC
Body Style
 Simplex
Polish Type
UPC
Fiber Mode
Single Mode
 Insertion Loss
≤0.2dB
Durability
1000 times
Mounting Type
Full flanged
Alignment Sleeve Material
Ceramic
Working Temperature
-25~70°C Flammability Rate
UL94-V0
