  • 1x8 PLC Splitter, Steel tube type, Singlemode 900μm, None connector

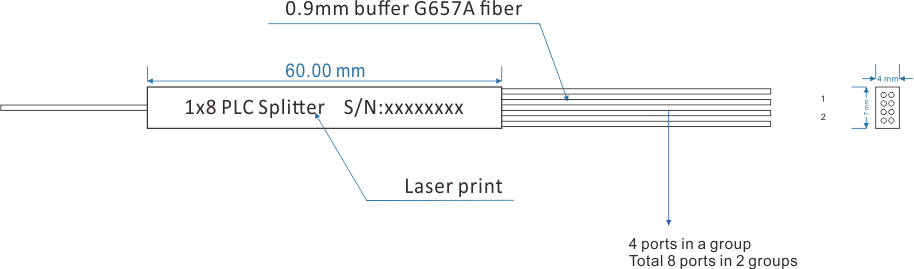

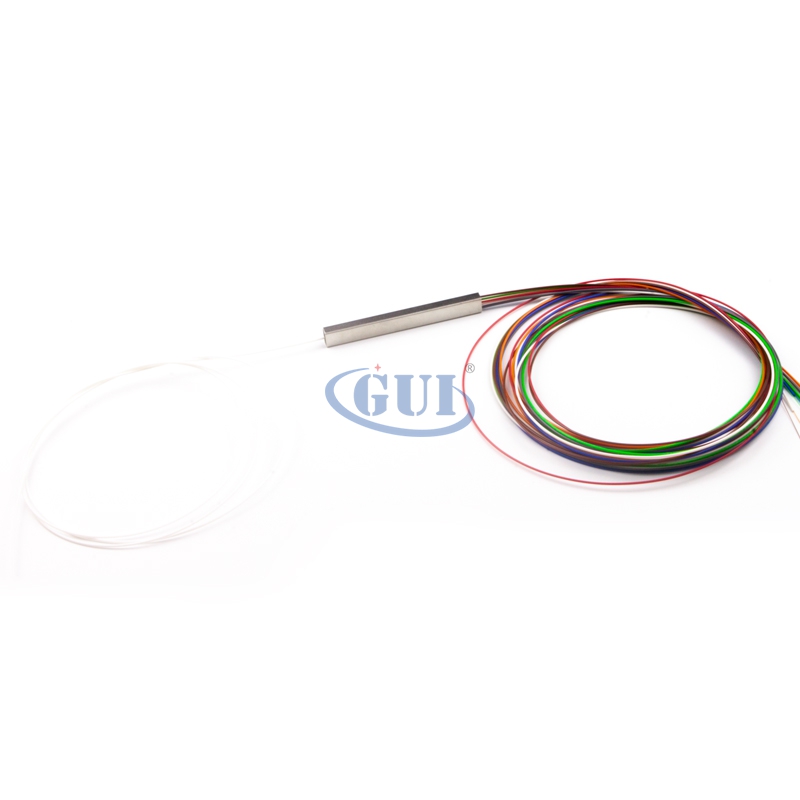

    1x8 PLC Splitter, Steel tube type, Singlemode 900μm, None connector

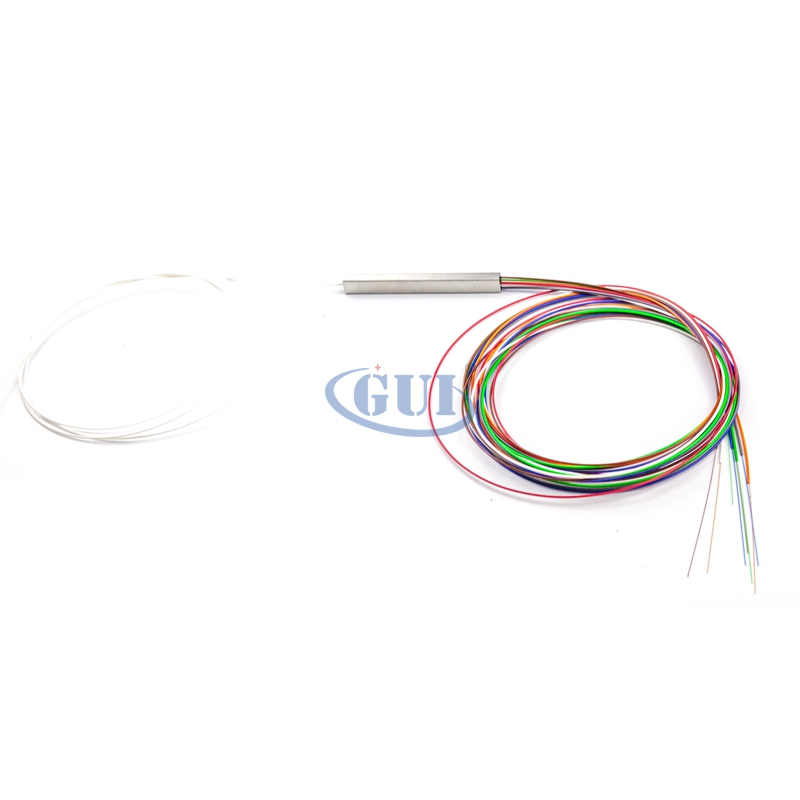

    1x8 PLC Splitter, Steel tube type, Singlemode 900μm, None connector

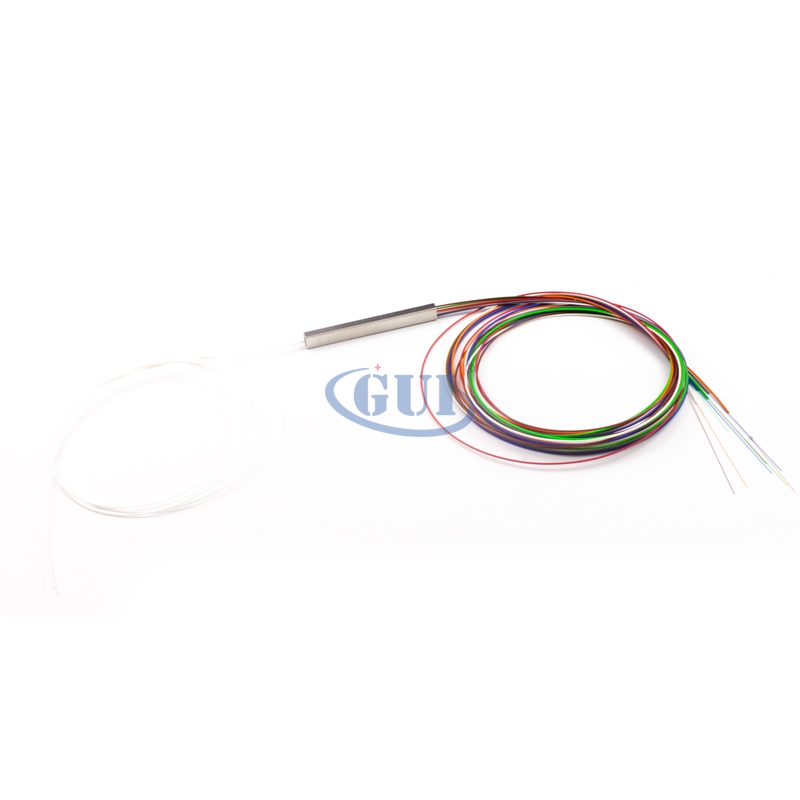

    1x8 PLC Splitter, Steel tube type, Singlemode 900μm, None connector

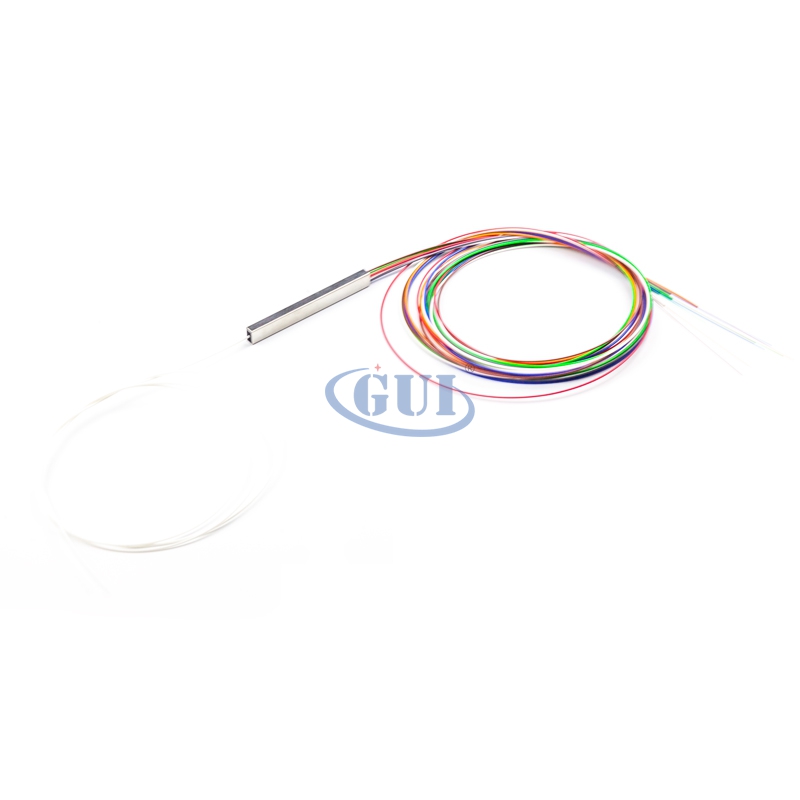

    1x8 PLC Splitter, Steel tube type, Singlemode 900μm, None connector

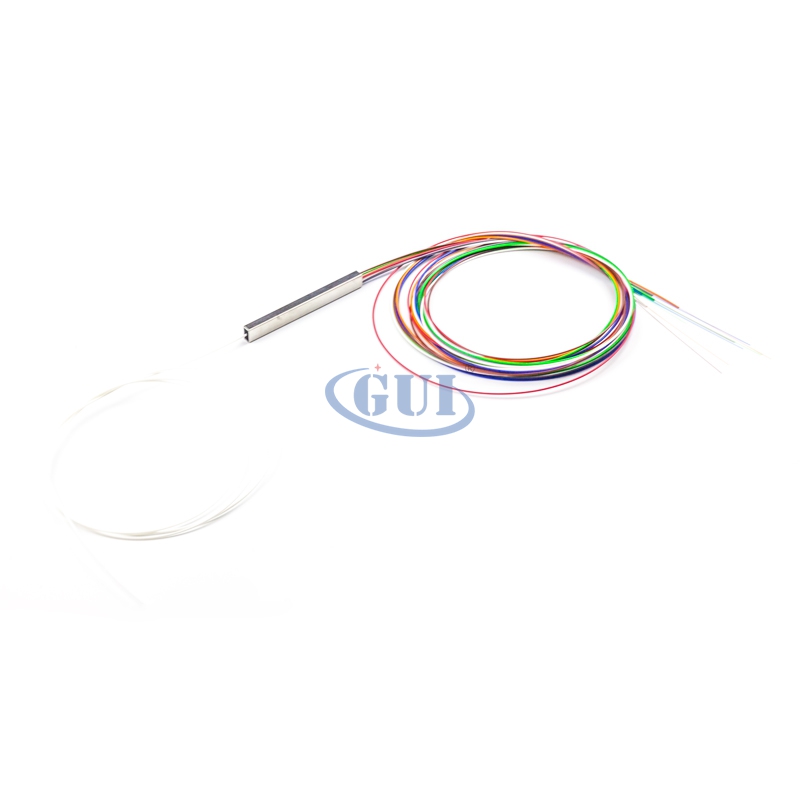

    1x8 PLC Splitter, Steel tube type, Singlemode 900μm, None connector
    ❤ Add to collection

  • 1x8 PLC Splitter, Steel tube type, Singlemode 900μm, None connector

    Steel Tube Type
    1X8
    0.9mm buffer G.657A fiber
    • U.S.＄0.93-1.40
      U.S.＄0.00
      U.S.＄0.93-1.40

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.00KG
    • Quantity：
    • (Inventory: 299997)
Product parameters
  • Packing tye:Steel Tube Type
  • Parameter:1X8
  • Fiber Type:0.9mm buffer G.657A fiber
Description

Introduction of Fiber Optic PLC Splitter
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. Blockless PLC splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It's mainly used for various connection and distribution boxes or network cabinets.
Features of PLC splitter
• Low insertion loss
• low polarization dependent loss
• low back reflection
• Wide Operating Wavelength: 1260~1650nm
• High Reliability and Stability

Specifications

Parameter
1X8
Fiber Type
G.657A
Operating Wavelength(nm)
1260～1650
Insertion Loss(dB)
Typical
10.2
Max
10.7
 Loss Uniformity (dB)
Max
0.8
 Return Loss (dB)
Min 55
 PDL (dB)
Max
0.2
 Directivity (dB)
Min 55
Wavelength Dependent Loss(dB)
Max 0.5
Operating Temperature (°C)
-40~+85
Storage Temperature (°C)
-40~+85


· Above is the parameters for Blockless Fiber PLC Splitter without connectors.
· Within connectors, the insertion loss will be 0.2dB higher.
