Home ／ Fiber Optic Networking ／ Fiber Optic Patch cord ／ Single Mode G657A1 Simplex ／ FC-FC SMF 9/125μm Single Mode Fiber Patchcord Simplex
  • FC-FC SMF 9/125μm Single Mode Fiber Patchcord Simplex

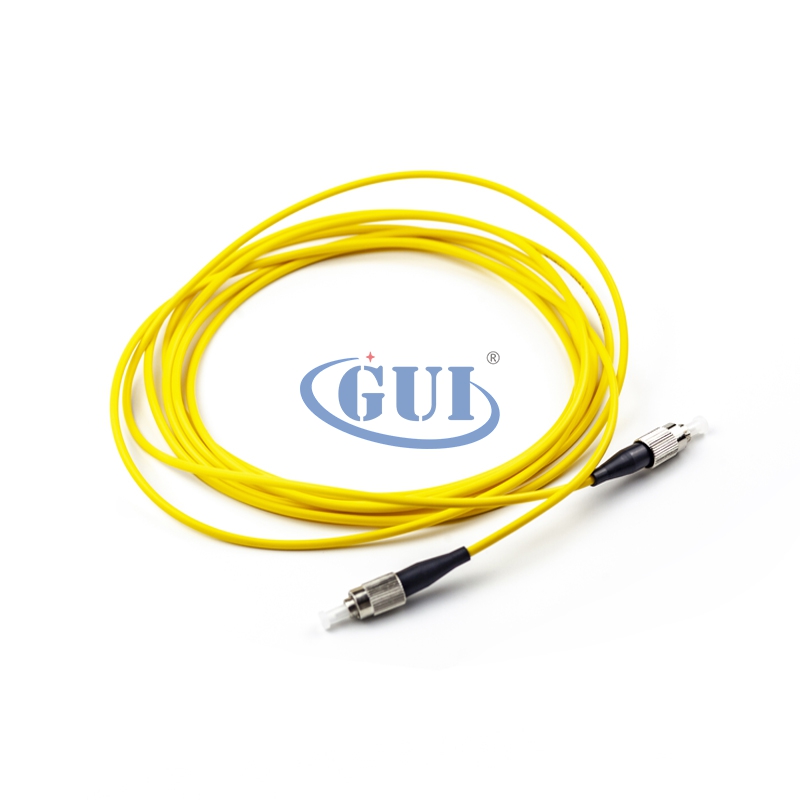

    FC-FC SMF 9/125μm Single Mode Fiber Patchcord Simplex
    FC-FC SMF 9/125μm Single Mode Fiber Patchcord Simplex
    FC-FC SMF 9/125μm Single Mode Fiber Patchcord Simplex
    FC-FC SMF 9/125μm Single Mode Fiber Patchcord Simplex
    FC-FC SMF 9/125μm Single Mode Fiber Patchcord Simplex
    FC-FC SMF 9/125μm Single Mode Fiber Patchcord Simplex
    ❤ Add to collection

  • FC-FC SMF 9/125μm Single Mode Fiber Patchcord Simplex

    FC
    UPC,APC
    OS2
    1m,1.5m,2m,3m,5m,7m,10m,15m,20m,25m,30m,50m
    • U.S.＄0.40-1.46
      U.S.＄0.00
      U.S.＄0.40-1.46

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.00KG
    • Quantity：
    • (Inventory: 2399976)
Product parameters
  • Connector Type: FC
  • Polish type:UPC/ APC
  • Fiber type:OS2
  • Length:1m/ 1.5m/ 2m/ 3m/ 5m/ 7m/ 10m/ 15m/ 20m/ 25m/ 30m/ 50m
Description

High Quality and Cost-Effective 9/125μm Single Mode Bend Insensitive Fiber Optic Cable
The 9/125μm OS2 single mode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.
This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.

Application
• Low insertion loss and back reflection lossApplication
• Telecommunications
• CATV, LAN, MAN, WAN, Test &Measurement
• Military industry
• Medical
Features
• Ferrule end surface pre-domed
• Excellent mechanical endurance
• Good in repeatability
• Good in exchange

Product Specification
Connector Type
FC toFC
Polish Type
UPC toUPC
Fiber Count
Simplex
Fiber Mode
OS2 9/125μm
Wavelength
1310/1550nm
Minimum Bend Radius
10mm
Insertion Losss
≤0.3dB
Return Loss
≥50db
Fiber Grade
G.657.A1 (Compatible with G.652.D)
Cable Diameter
0.9mm/2.0mm/3.0mm
Attenuation at 1310 nm
0.36 dB/km
Attenuation at 1550 nm
0.22 dB/km
Cable lacket
PVC
Operating Temperature
-20℃~+70℃
Polarity
A(Tx) to B(Rx)
Storage Temperature
-40℃~+80℃

Custom OEM
We can provide all kinds of connectors and cables for OEM (SC,LC,FC,ST,MU,MTRJ,MPO/MTP,PDLC and so on)

High Quality Fiber Optic Cable Guarantee
Comprehensive performance testing makes sure the cable work more secure and data transmission more reliable and stable in your network.
