- Connector Type:LC
- Polish type:UPC/ APC
- Fiber type:OM4
- Length:1m/ 1.5m/ 2m/ 3m/ 5m/ 7m/ 10m/ 15m/ 20m/ 25m/ 30m/ 50m

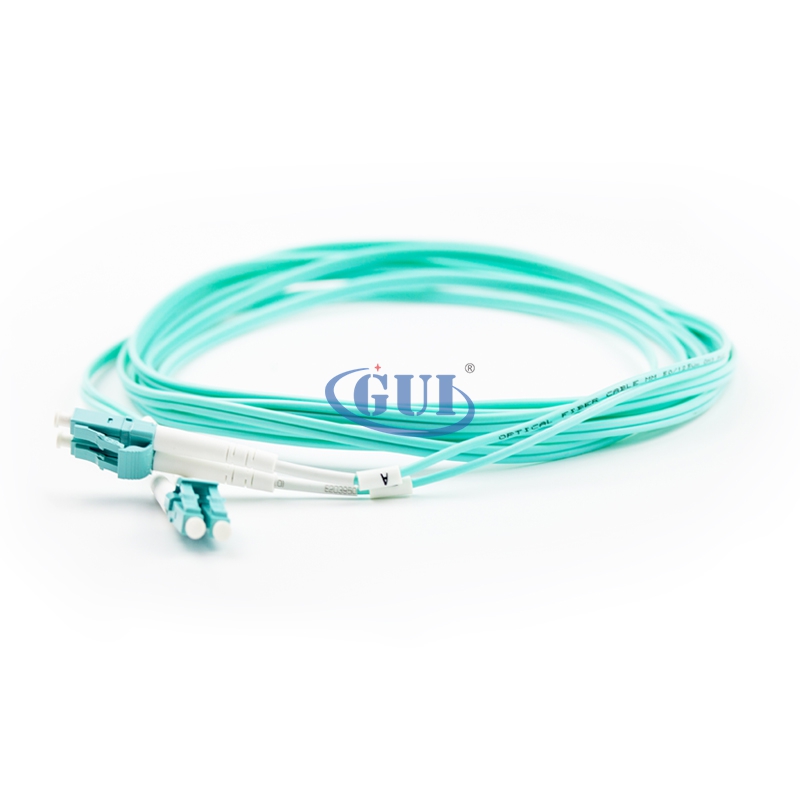

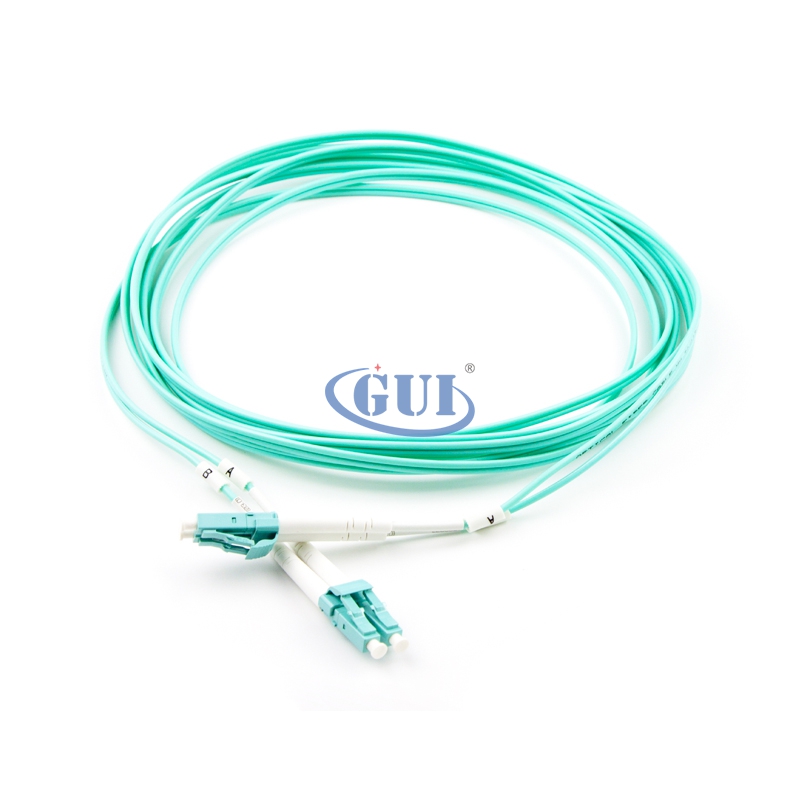

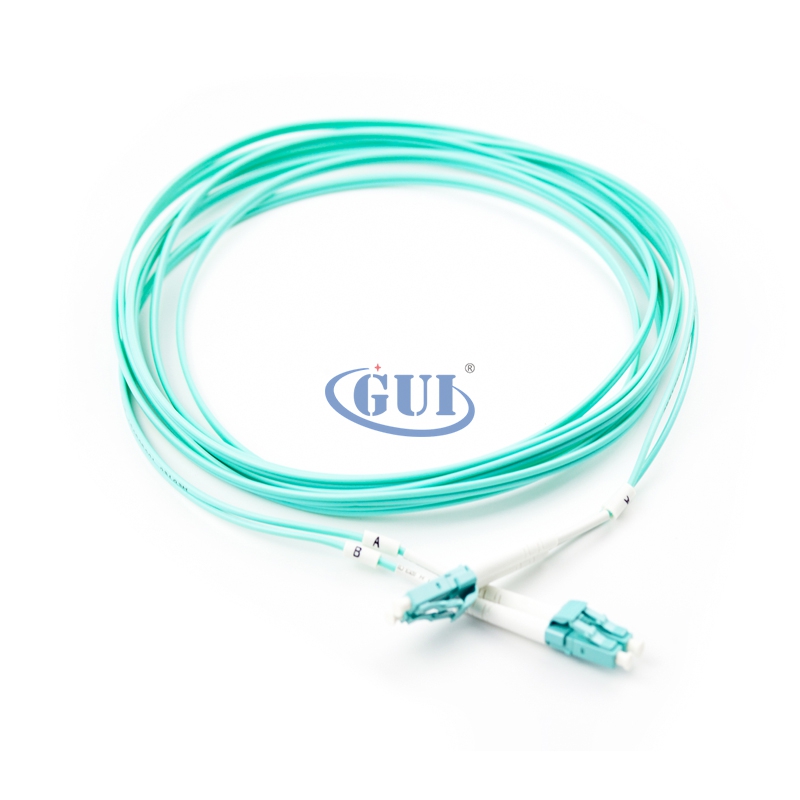

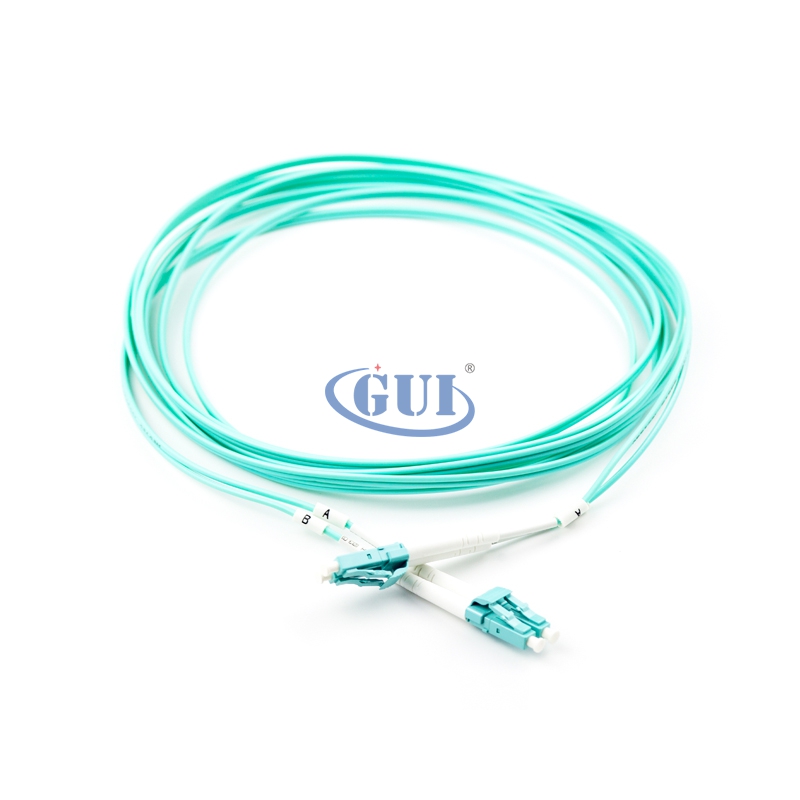

The OM4 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.
These multimode fiber optic cable are ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 40G/100G applications.
Application
• Telecommunications
• CATV, LAN, MAN, WAN, Test &Measurement
• Military industry
• Medical
Features
• Low insertion loss and back reflection loss
• Ferrule end surface pre-domed
• Excellent mechanical endurance
• Good in repeatability
• Good in exchange
Product Specification
| Mode | Single mode | Multimode | |
| Polish | UPC | APC | PC |
| Insertion Loss | ≤0.30dB | ≤0.20dB | ≤0.20dB |
| Return Loss | ≥50dB | ≥60dB | ≥30dB |
| Test Wavelength | 1310/1550nm | 850/1310nm | |
| Durability(500 Matings) | ≤0.2dB | ||
| Operating Temperature | -40℃~+70℃ | ||
| Storage Temperature | -45℃~+85℃ | ||
| Attenuation at 1550 nm | 0.22 dB/km | ||
| Cable Diameter | 0.9mm/2.0mm/3.0mm | ||
