Home ／ Discounted price Fiber Optic Networking ／ Fiber Optic Patch cord ／ SC-SC SMF 9/125μm Single Mode Armoured Fiber Patchcord Simplex
  • SC-SC SMF 9/125μm Single Mode Armoured Fiber Patchcord Simplex

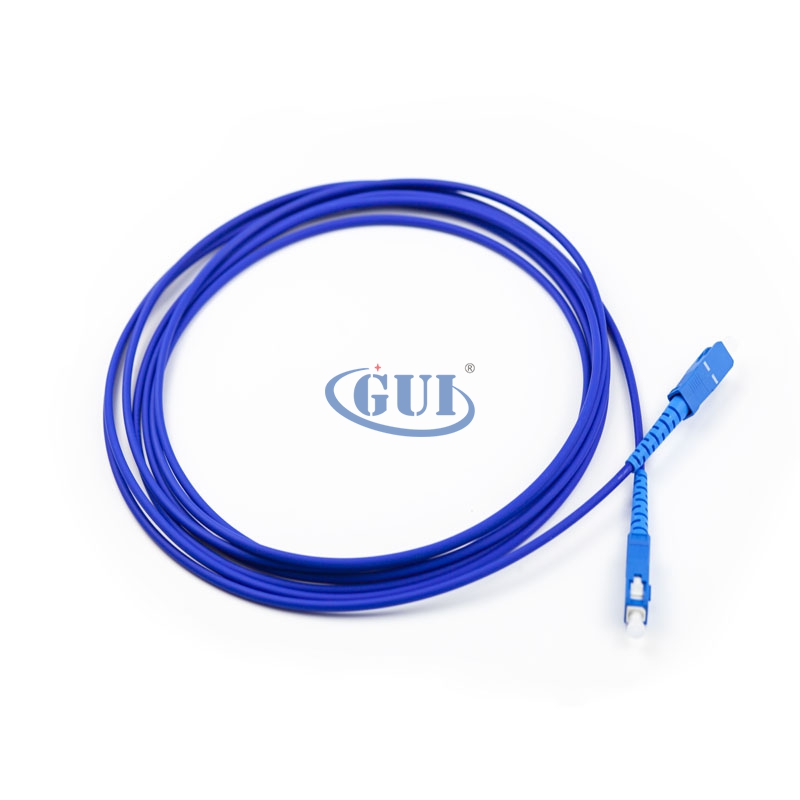

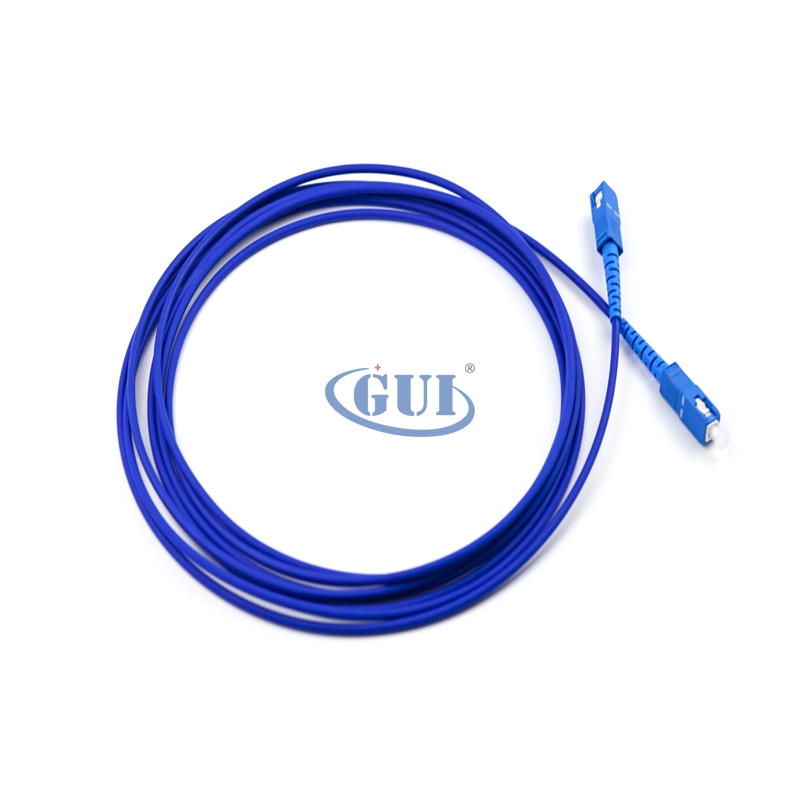

    SC-SC SMF 9/125μm Single Mode Armoured Fiber Patchcord Simplex
    SC-SC SMF 9/125μm Single Mode Armoured Fiber Patchcord Simplex
    SC-SC SMF 9/125μm Single Mode Armoured Fiber Patchcord Simplex
    SC-SC SMF 9/125μm Single Mode Armoured Fiber Patchcord Simplex
    SC-SC SMF 9/125μm Single Mode Armoured Fiber Patchcord Simplex
    ❤ Add to collection

  • SC-SC SMF 9/125μm Single Mode Armoured Fiber Patchcord Simplex

    SC
    UPC,APC
    OS2
    1m,1.5m,2m,3m,5m,7m,10m,15m,20m,25m,30m,50m
    • U.S.＄0.99-7.29
      U.S.＄0.00
      U.S.＄0.99-7.29

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.00KG
    • Quantity：
    • (Inventory: 57599424)
Product parameters
  • Connector Type: SC
  • Polish type:UPC/ APC
  • Fiber type:OS2
  • Length:1m/ 1.5m/ 2m/ 3m/ 5m/ 7m/ 10m/ 15m/ 20m/ 25m/ 30m/ 50m
Description

Fiber optic patch cord provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
Application
• Telecommunications
• CATV, LAN, MAN, WAN, Test &Measurement
• Military industry
• Medical
Features
• Low insertion loss and back reflection loss
• Ferrule end surface pre-domed
• Excellent mechanical endurance
• Good in repeatability
• Good in exchange
Product Specification

Mode
Single mode
Multimode
Polish
UPC
APC
PC
Insertion Loss
≤0.30dB
≤0.20dB
≤0.20dB
Return Loss
≥50dB
≥60dB
≥30dB
Test Wavelength
1310/1550nm
850/1310nm
Durability(500 Matings)
 ≤0.2dB
Operating Temperature
 -40℃~+70℃
Storage Temperature
 -45℃~+85℃
 Attenuation at 1550 nm
0.22 dB/km
Cable Diameter
0.9mm/2.0mm/3.0mm


Custom OEM

We can provide all kinds of connectors and cables for OEM (SC,LC,FC,ST,MU,MTRJ,MPO/MTP,PDLC and so on)


High Quality Fiber Optic Cable Guarantee
Comprehensive performance testing makes sure the cable work more secure and data transmission more reliable and stable in your network.
