Home ／ Fiber Optic Cables ／ CPRI Cable ／ CPRI with ODC(male) connector
  • CPRI with ODC(male) connector

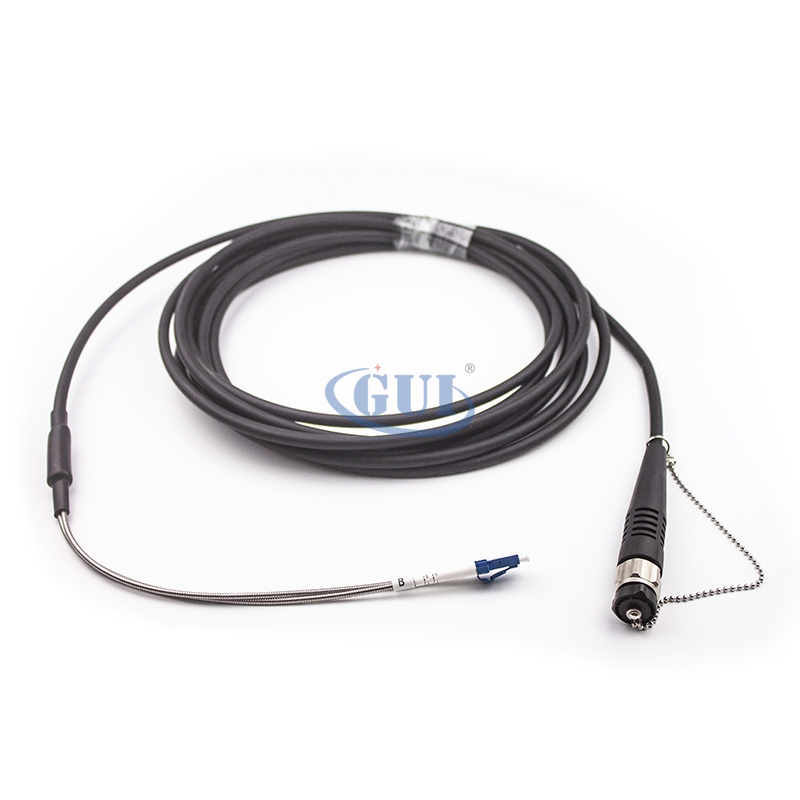

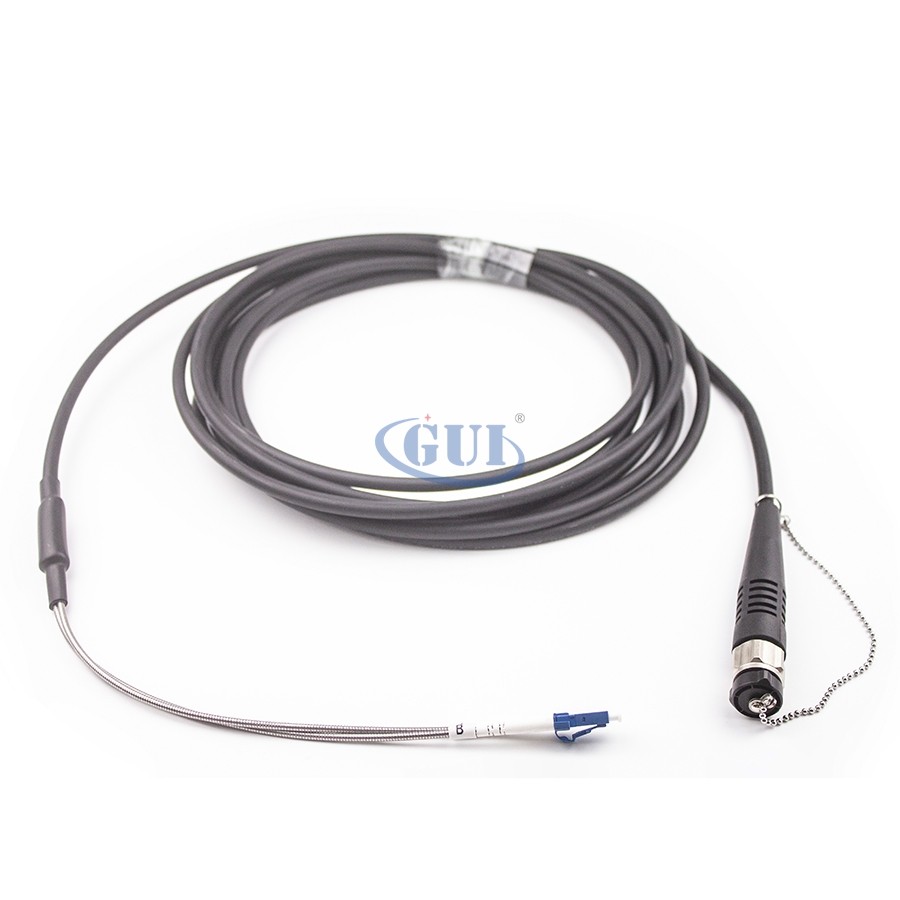

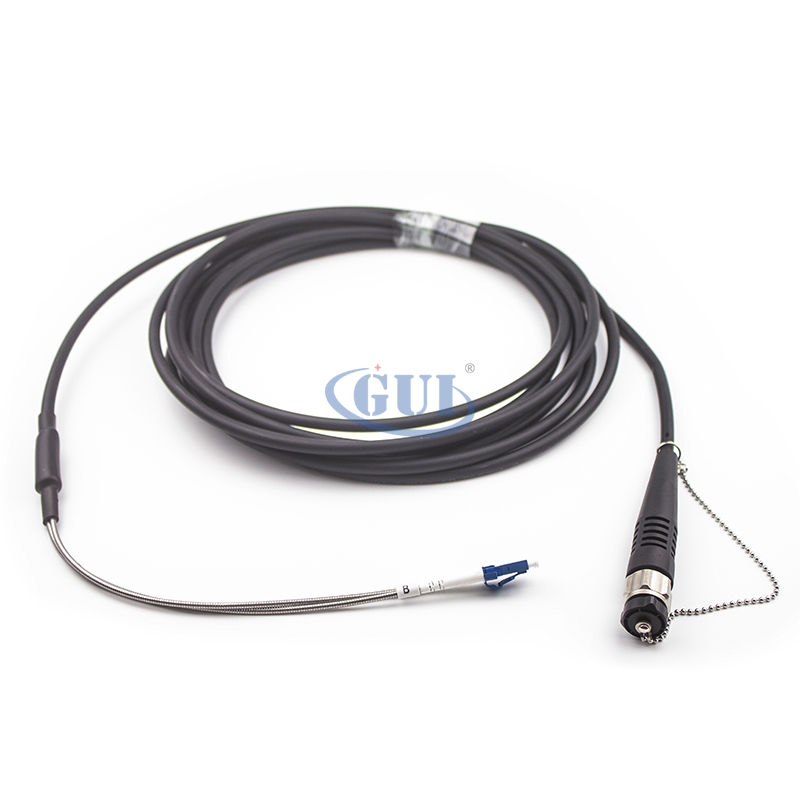

    CPRI with ODC(male) connector
    CPRI with ODC(male) connector
    CPRI with ODC(male) connector
    CPRI with ODC(male) connector
    ❤ Add to collection

  • CPRI with ODC(male) connector

    ODC Connector
    10m,15m,20m,25m,30m,35m,40m,45m,50m,55m,60m,65m,70m,75m,80m,90m,100m
    Armored cable,non-armoured
    • U.S.＄17.80-58.10
      U.S.＄0.00
      U.S.＄17.80-58.10

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.00KG
    • Quantity：
    • (Inventory: 57599424)
Product parameters
  • Connector type:ODC Connector
  • length:10m/ 15m/ 20m/ 25m/ 30m/ 35m/ 40m/ 45m/ 50m/ 55m/ 60m/ 65m/ 70m/ 75m/ 80m/ 90m/ 100m
  • Optical cable type:Armored cable/ non-armoured
Description
ODC connectors are designed for the fiber to antenna(FTTA) applications,ODC fiber optic connector can withstand harsh environmental conditions when being used in outdoor applications. They are used for data and telecommunications in mobile radio, process, utility and traffic automation.
FiberStore provides all types of outdoor fiber connectors. These connectors meet the highest quality and robustness standards, and they offer reliability and flexibility for outdoor applications.
The odc connectors,together with the support optical cable,are becoming the standard interface specified in 3G,4G and WiMax Base Station remote radios and Fiber-to-the-Antenna applications.
The ODC cable assembly is based on the N Type RF Coax connector.


Technology Full ceramic ferrule and sleeve
Housing material Nickel plated brass
Mechanical performance ODC plug ≤1000 N tensile load≤30 N static side load
ODC socket ≤30 N tensile load
Installation torque force min.1Nm max.2Nm
Operating temperature IEC 61300 – 2 – 22 -40℃ up to +85℃
Mating durability 1000 cycle
Ingress protection(mate) IEC60529 Ip 68
Salt mist IEC61300-2-26 30 days passed
Vibration IEC61300-2-1 Pass 10-500Hz/10g
Shock IEC61300-2-9 Pass 100g
