Product parameters
- Packing tye:ABS Box Type
- Parameter:2X32
Description

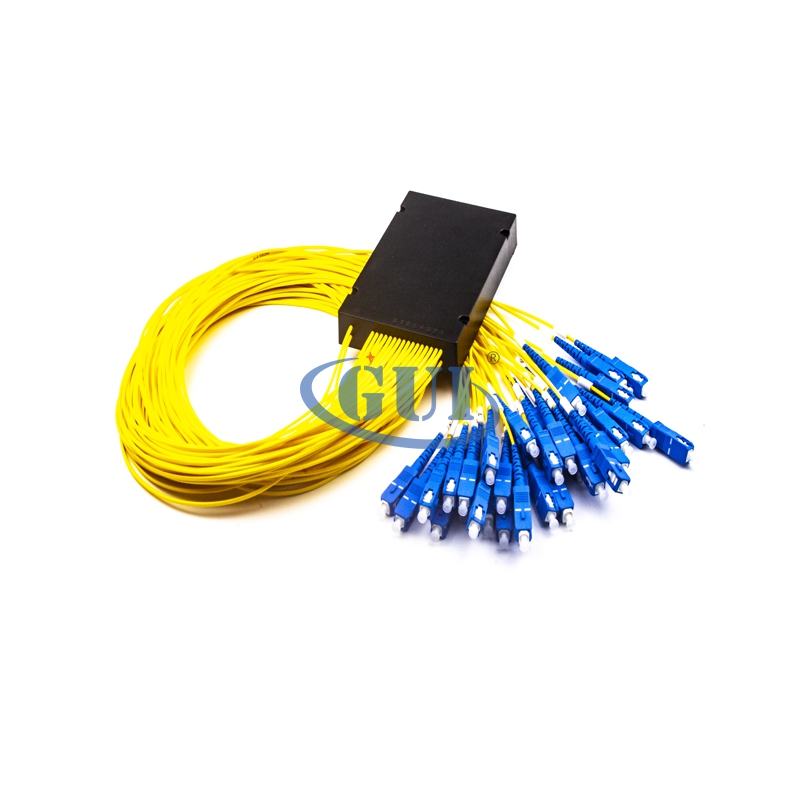

Introduction of Fiber Optic PLC Splitter
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. Blockless PLC splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It's mainly used for various connection and distribution boxes or network cabinets.
Features of PLC splitter
• Low insertion loss
• low polarization dependent loss
• low back reflection
• Wide Operating Wavelength: 1260~1650nm
• High Reliability and Stability
Specifications
· Above is the parameters for Blockless Fiber PLC Splitter without connectors.
· Within connectors, the insertion loss will be 0.2dB higher.
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. Blockless PLC splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It's mainly used for various connection and distribution boxes or network cabinets.
Features of PLC splitter
• Low insertion loss
• low polarization dependent loss
• low back reflection
• Wide Operating Wavelength: 1260~1650nm
• High Reliability and Stability
Specifications
|
Parameter |
2X32 |
|
|
Fiber Type |
G.657A |
|
|
Operating Wavelength(nm) |
1260～1650 |
|
|
Insertion Loss(dB) |
Typical |
16.5 |
|
Max |
17.1 | |
|
Loss Uniformity (dB) |
Max |
1.8 |
|
Return Loss (dB) |
Min | 55 |
|
PDL (dB) |
Max |
0.3 |
|
Directivity (dB) |
Min | 55 |
|
Wavelength Dependent Loss(dB) |
Max | 0.6 |
|
Operating Temperature (°C) |
-40~+85 |
|
|
Storage Temperature (°C) |
-40~+85 |
|
· Above is the parameters for Blockless Fiber PLC Splitter without connectors.
· Within connectors, the insertion loss will be 0.2dB higher.
