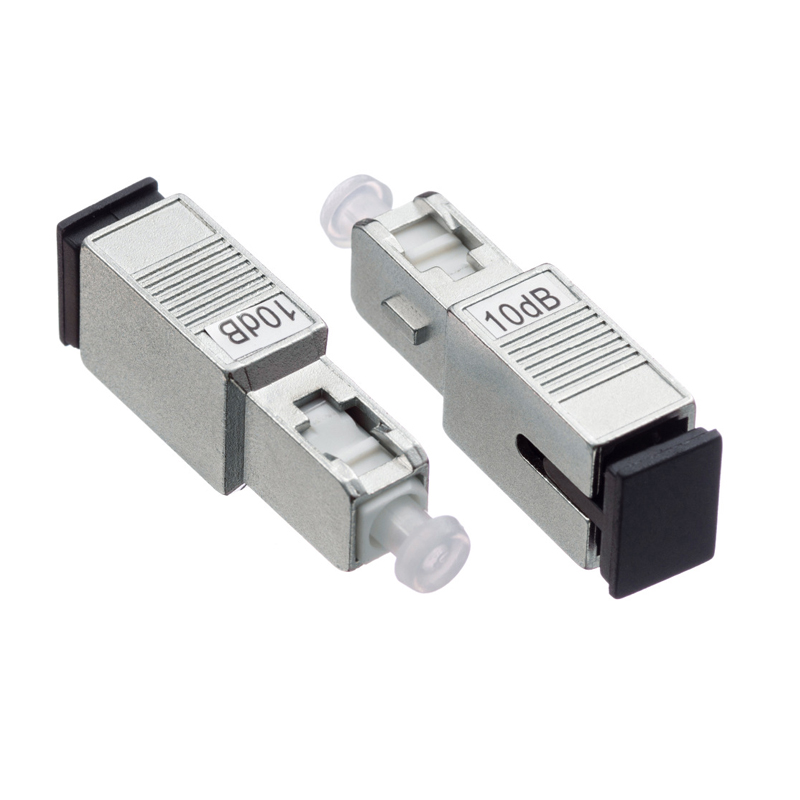

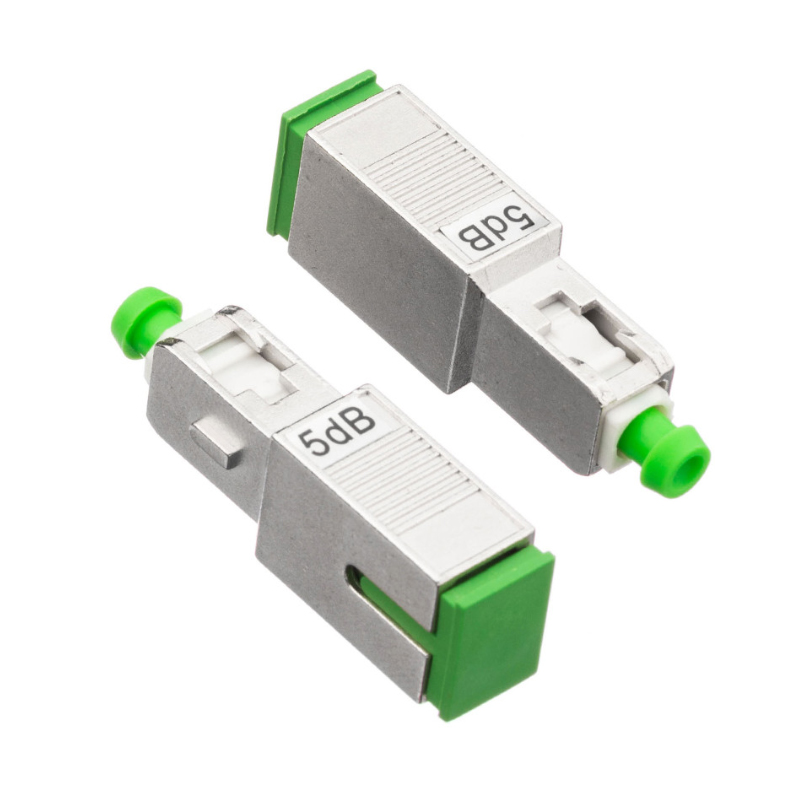

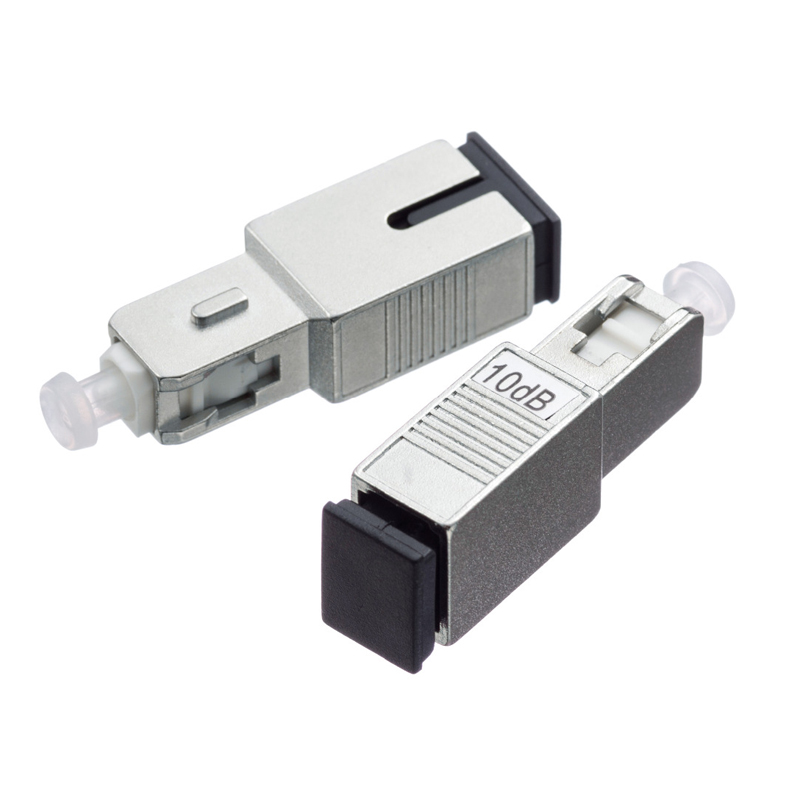

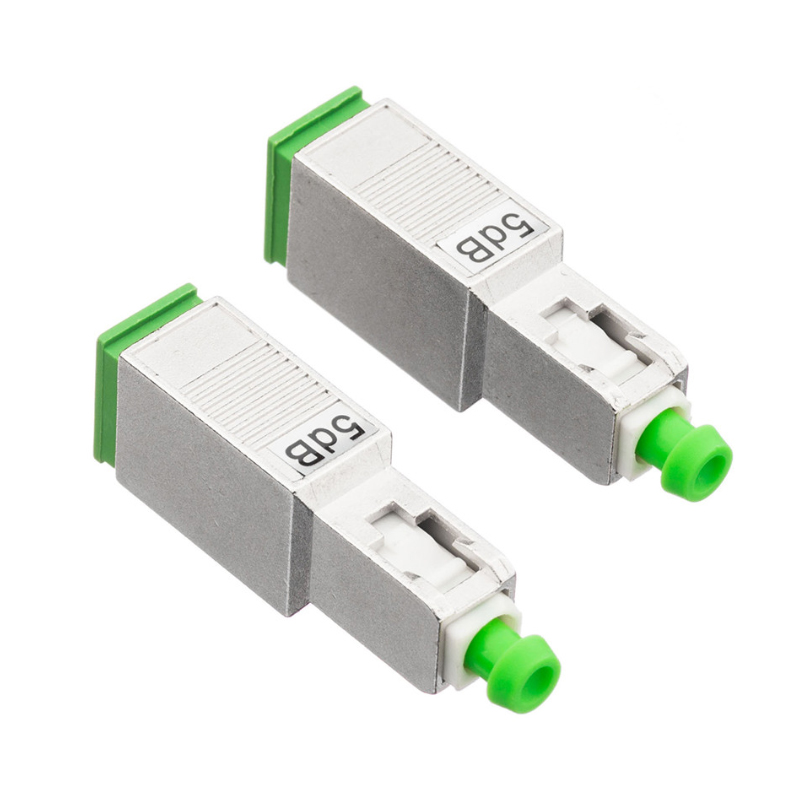

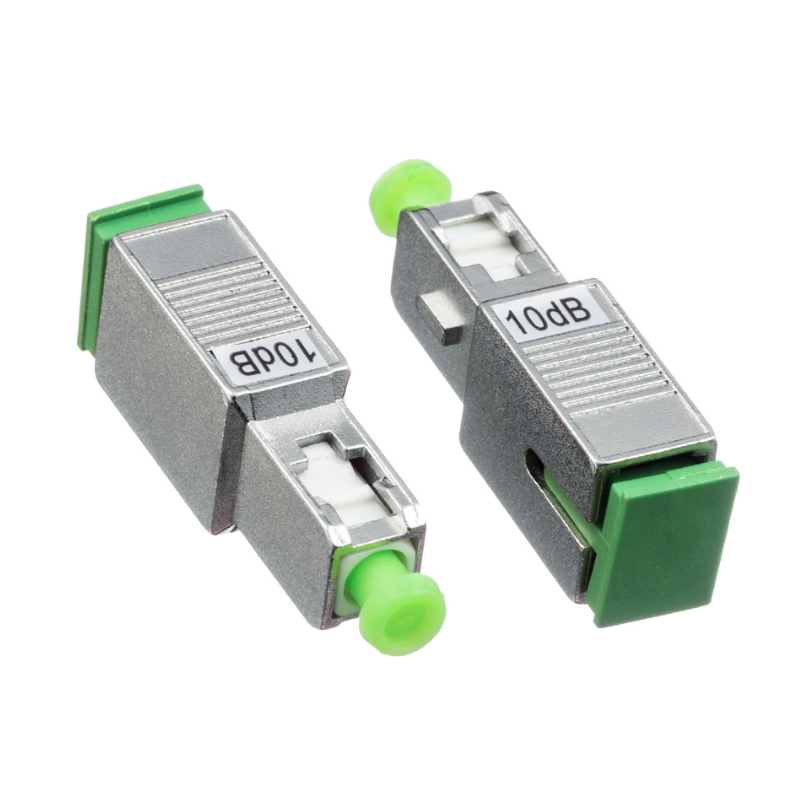

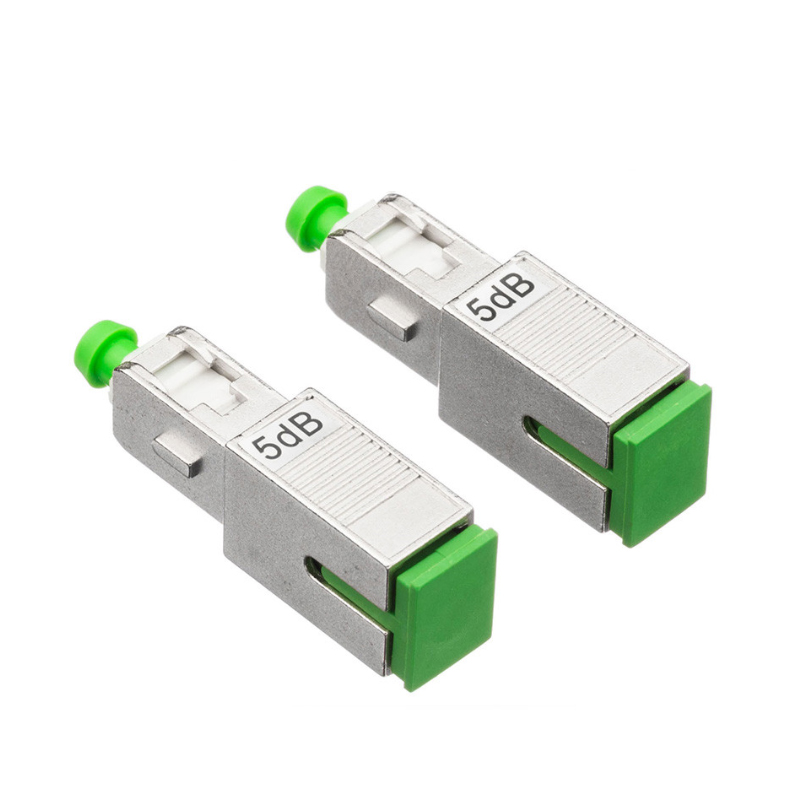

Home ／ Fiber Optic Networking ／ Fiber Adapters & Assemblies ／ Optical Attenuators ／ SC/UPC Singlemode Fixed Fiber Optic Attenuator, Male-Female
Product parameters
    Description

    Fiber Optic Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal.It is often used to limit the optical power received by the photo detector to within the limits of the optical receiver.

    Application
    • Fiber optic systems
    • CATV and telecommunication systems
    • Receiver padding for optical receiver protection
    • Optical power equalization
    • Increasing dynamic range for apparatus

    Product Specification

    Fiber Connector  SC/APC  Ferrule Type  Zirconia Ceramic
     Connector Gender  Male to Female  Transfer Mode  Single mode
     Attenuation  1~20dB  Operating Wavelength(nm)  1260~1620(SM)
     Attenuation Accuracy  1-5dB: ±0.5dB | 6-20dB: ±10%dB  Return Loss  ≥60dB
     Polarization Dependent Loss  ≤0.2dB  Max Optical Input Power  200mW
     Storage Temperature Range  -40~85°C  Operating Temperature Range  -40~80°C
