- Series:Waterproof Pigtail
- Connector Type:FC/ SC
- Polish type:UPC/ APC
- Length:3m/ 5m/ 10m

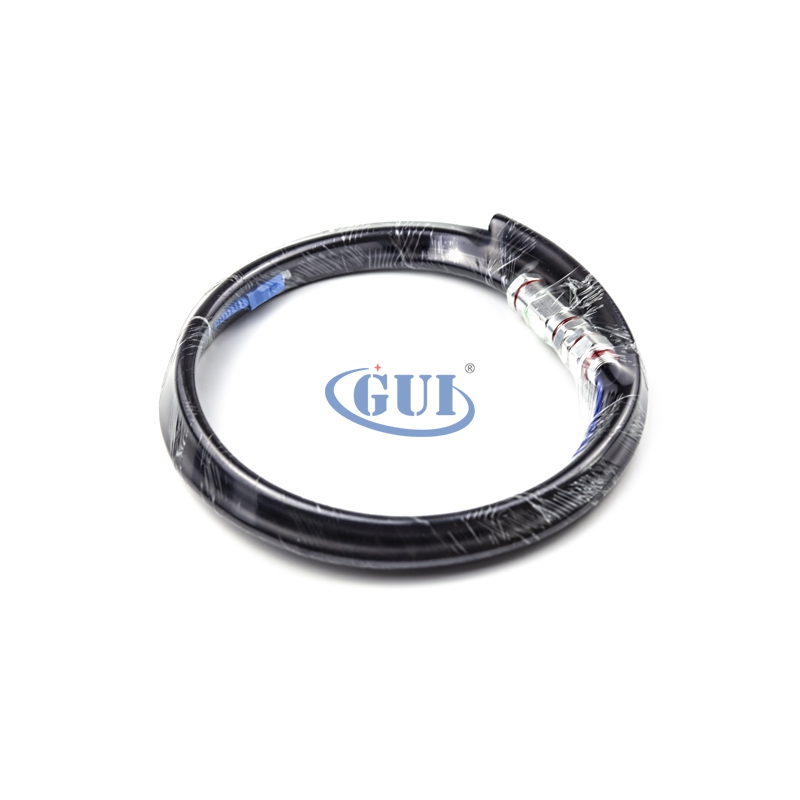

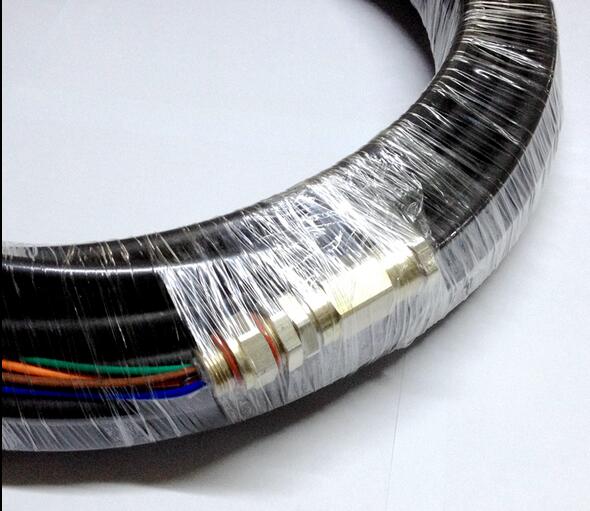

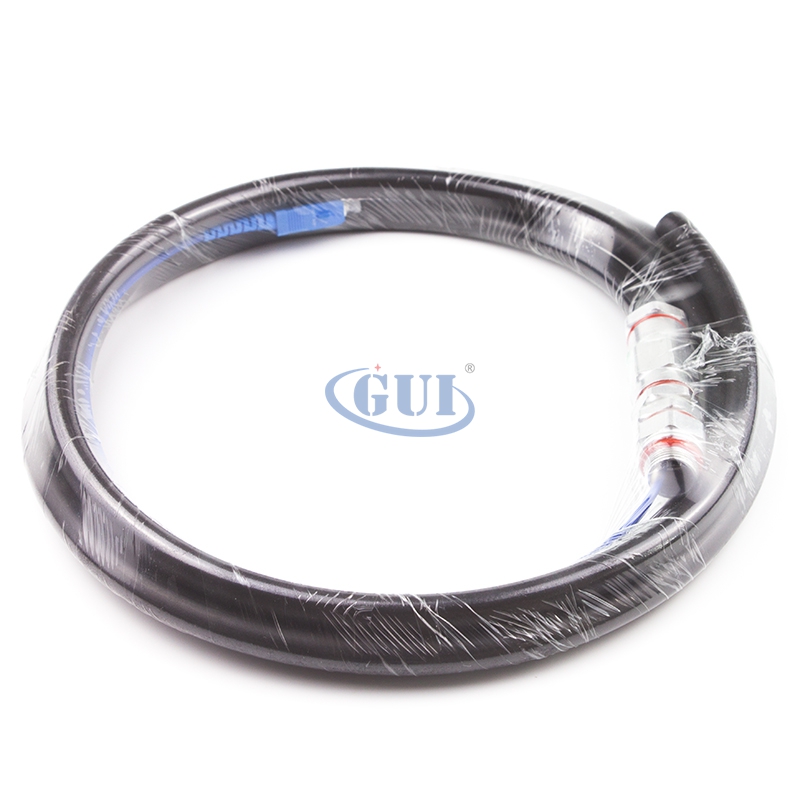

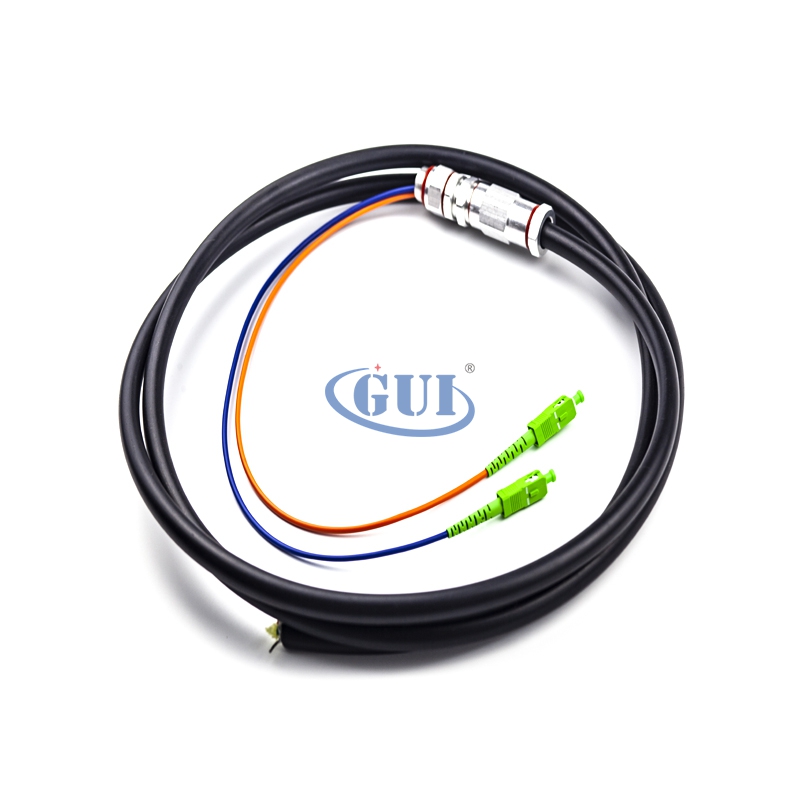

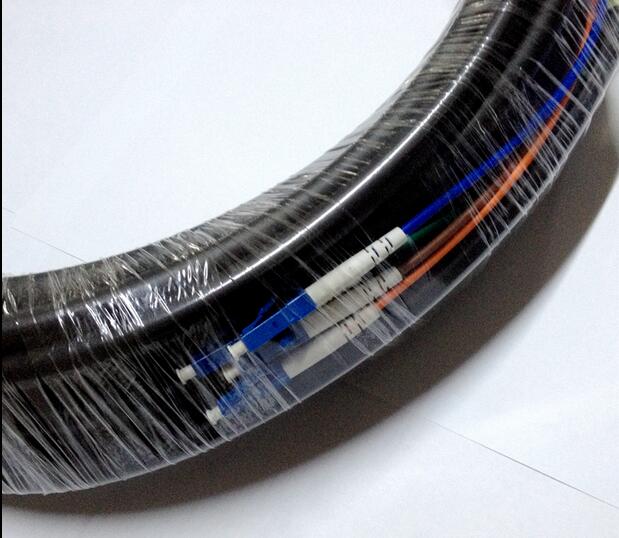

Armored tactical cable features strong tensile strength, strong pressure resistance and good flexibility characteristics. Besides, it is bending resistant, oil resistant, wear resistant and flame retardant. Therefore, armored tactical cable is ideal for both indoor and outdoor applications, such as rapid wiring/repeated retrieval in military field or connecting the networks of two buildings through the use of an underground conduit or direct buried.
Application
• Telecommunications
• CATV, LAN, MAN, WAN, Test &Measurement
• Military industry
• Medical
Features
• Low insertion loss and back reflection loss
• Ferrule end surface pre-domed
• Excellent mechanical endurance
• Good in repeatability
• Good in exchange
Product Specification
| Connector Type | LC to LC | Polish Type | UPC to UPC |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Insertion Loss (dB) | ≤0.3 | Return Loss (dB) | ≥50 |
| Return Loss | ≥50dB | ≥60dB | ≥30dB |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) | Minimum Bend Radius | 10mm |
| Attenuation at 1310nm | 0.36 dB/km | Attenuation at 1550nm | 0.22 dB/km |
| Fiber Count | 2 Fibers | Cable Diameter | 4.0/7.0/10mm |
| Cable Jacket | TPU (Thermoplastic Polyurethane) | Jacket Color | Black |
| Operating Temperature | -40~85°C | Storage Temperature | -40~85°C |
