  • Break-out indoor cable 12 Cores

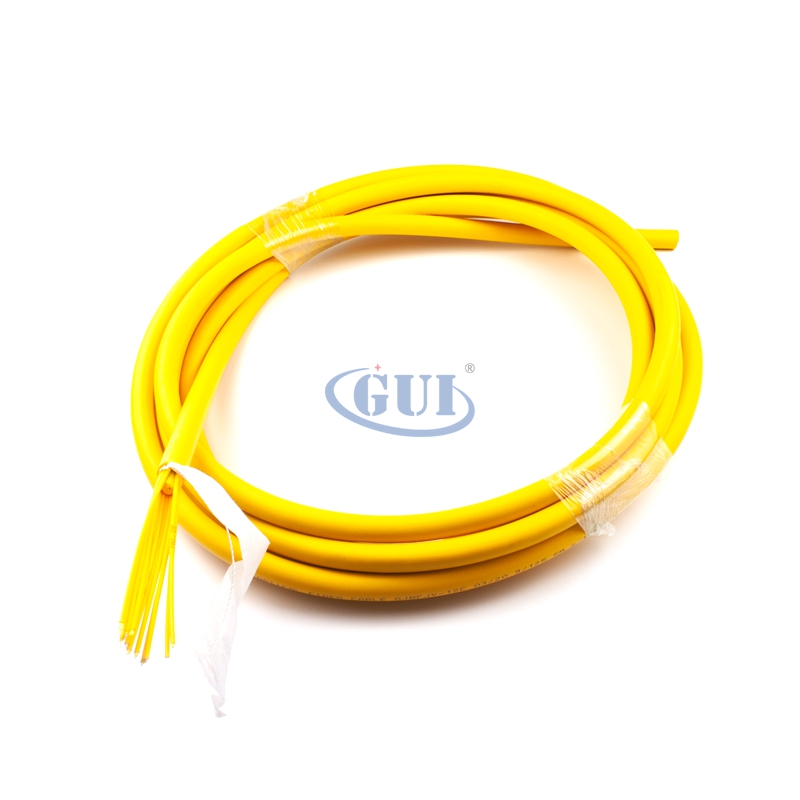

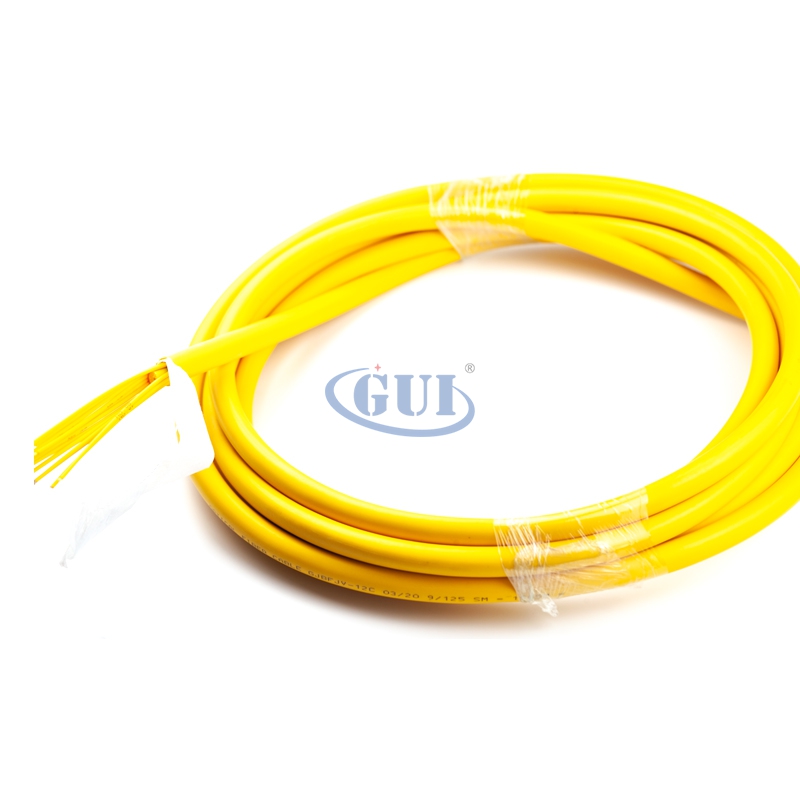

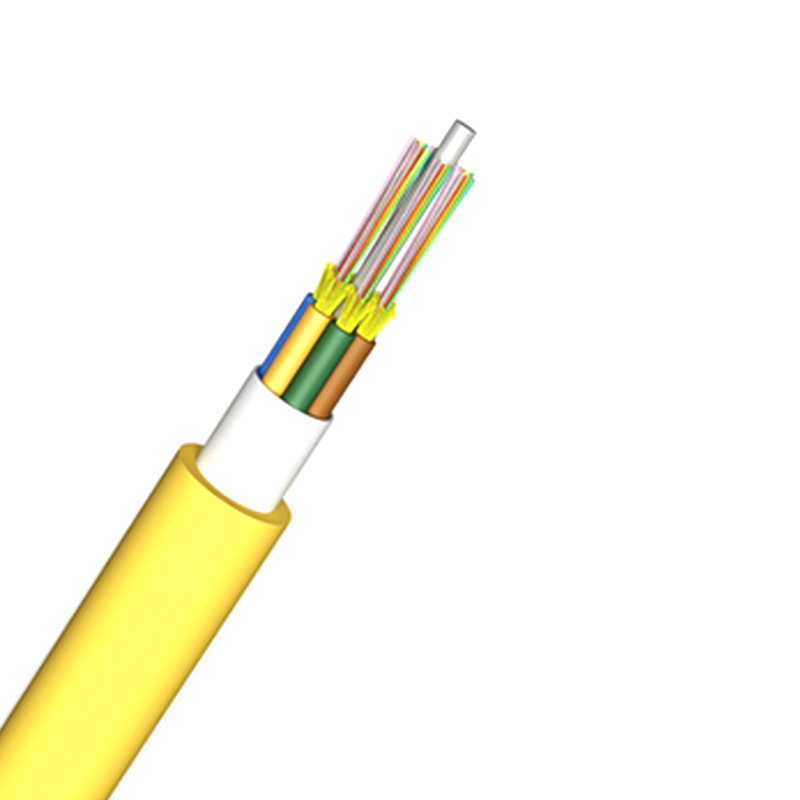

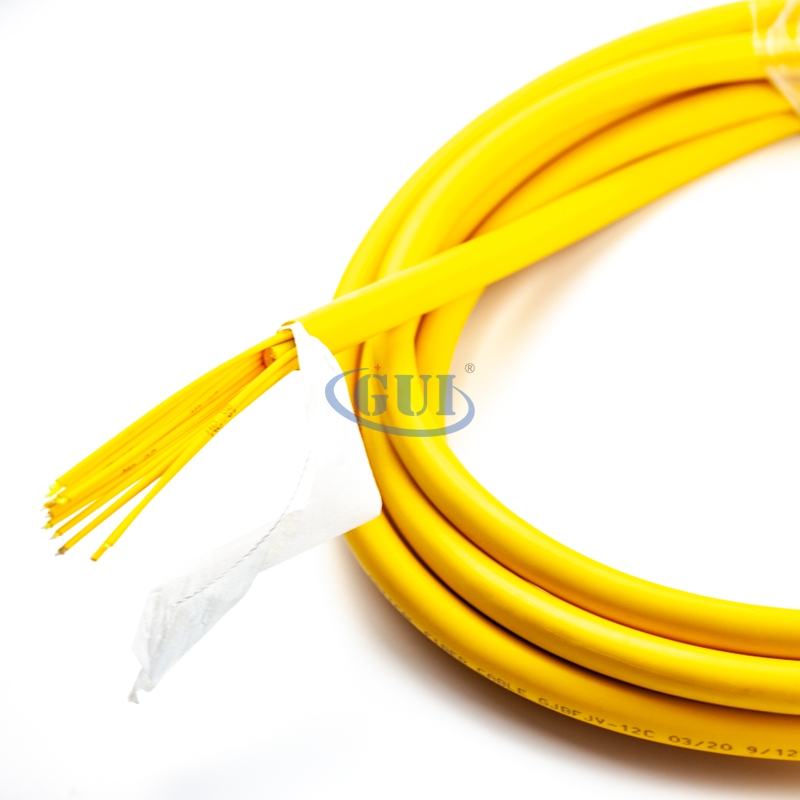

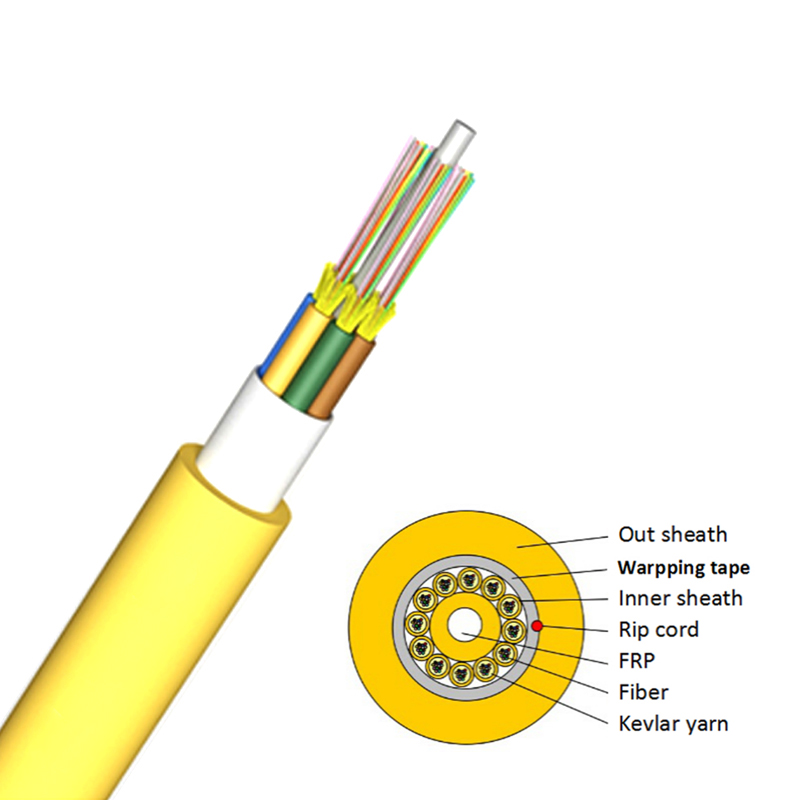

    Break-out indoor cable 12 Cores
    Break-out indoor cable 12 Cores
    Break-out indoor cable 12 Cores
    Break-out indoor cable 12 Cores
    Break-out indoor cable 12 Cores
    ❤ Add to collection

  • Break-out indoor cable 12 Cores

    The price is the price of 1 meter, increase the order quantity according to the length you need.

    • U.S.＄0.23-0.29
      U.S.＄0.00
      U.S.＄0.23-0.29

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.00KG
    • Quantity：
    • (Inventory: 599994)
Product parameters
    Description

    The price is the price of 1 meter, increase the order quantity according to the length you need.

    This 12C fiber cable assembly is designed to support today's data needs while meeting tomorrow's ever-advancing network requirements. It's ideal for connecting the networks of two buildings through the use of an underground conduit, also installed in entrance facilities.

    Product Specification

     Fiber Mode  OS2 9/125μm  Fiber Count  12 Fibers
     Jacket Material  PVC or LSZH  Jacket Color  Yellow
     Breakout OD  0.9 or 2.0mm  Trunk OD  8.3~11.2mm
     Insertion Loss  ≤0.3dB  Return Loss  ≥50dB
     Min. Dynamic Bend Radius  20D (mm)  Min. Static Bend Radius  10D (mm)
     Cable Type  Loose Tube  Maximum Tension of Pulling Tube  2500N
     Fiber Grade  G.652.D  Operating Temperature  -40~70°C
