    Cable Description

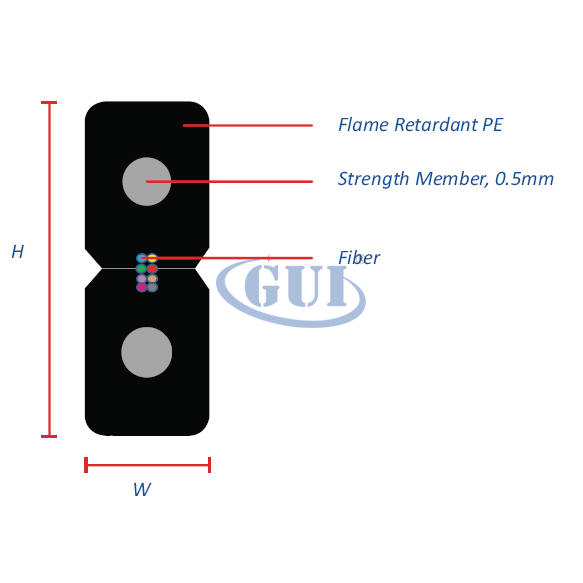

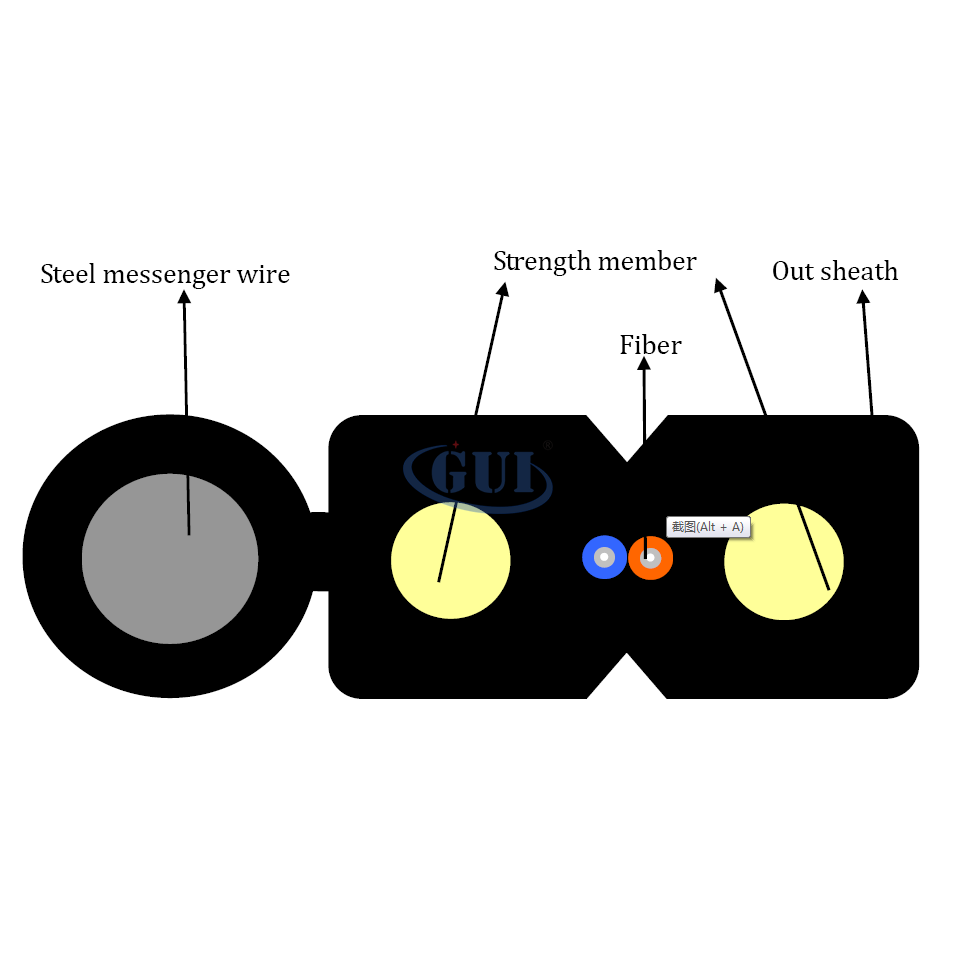

    FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit id positioned in the centre. Two parallel strength member are placed at the two sides. A steel wire as the additional strength member is also applied ,then, the cable is completed with a black HDPE sheath.

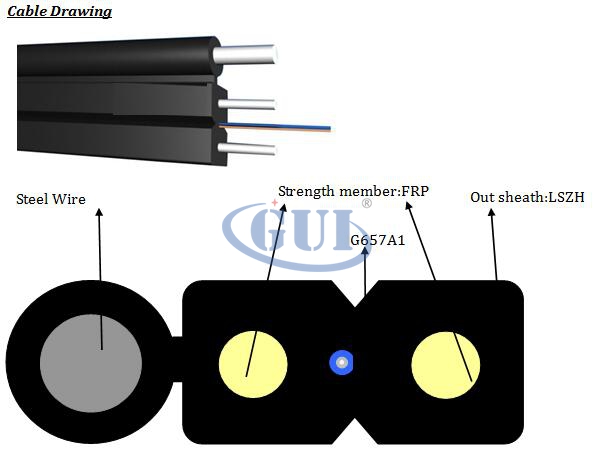

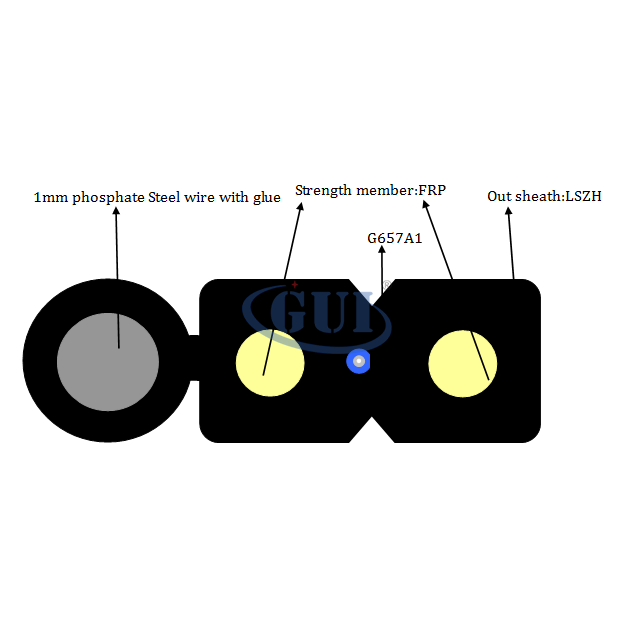

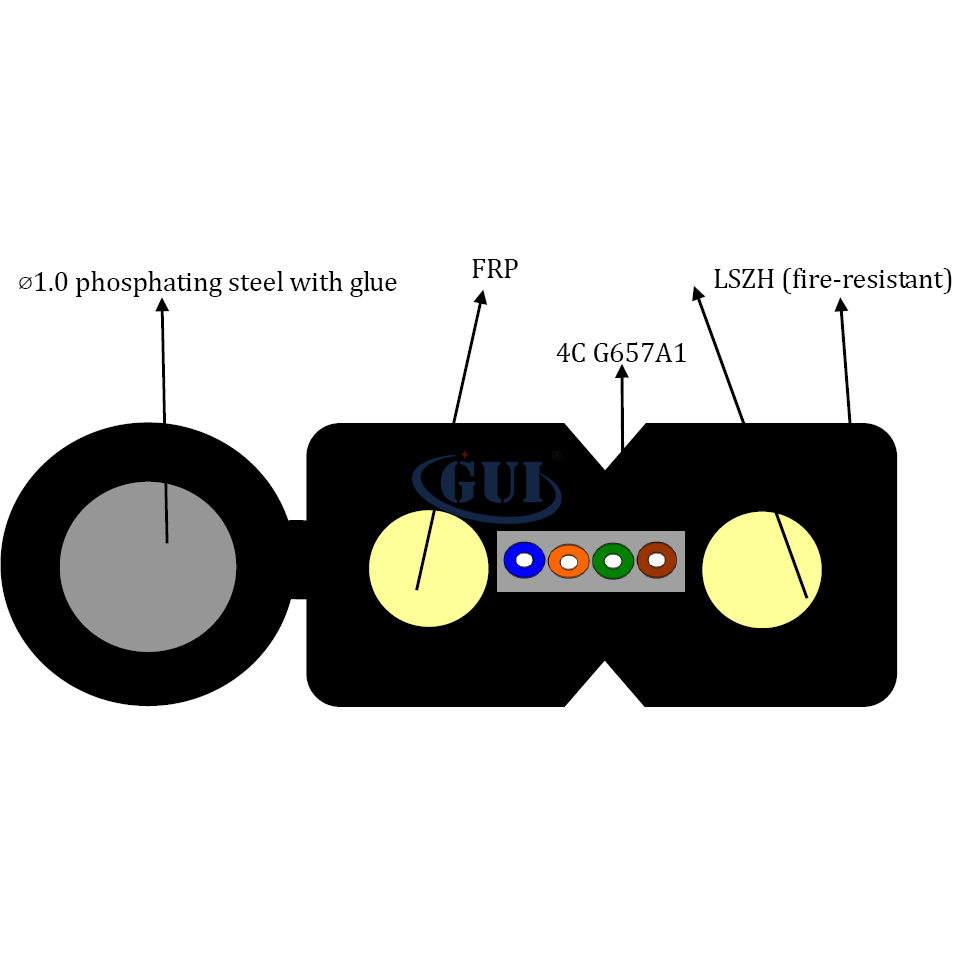

    Cable construction details

    Items
    		Description
    Number of fiber
    		1cores  or 2cores
    Fiber type
    		G657A1
    Strength member
    		material
    		FRP or AFRP or steel wire
    diameter
    		2*0.5mm (0.45mm)
    Self support
    Messenger wire
    		material
    		galvanized or phosphate Steel wire (with glue or without glue)
    diameter
    		1.0 or 1.2mm
    Outer sheath
    		material
    		LSZH
    diameter
    		1.8±0.2mm
    Cable size (Height * width)
    		2.0(±0.1) mm × 5(+0.2)mm
    Cable sheath thickness
    		Max.0.8mm/Min.0.4mm
    Messenger sheath thickness
    		0.5~0.7mm
    Cable weight
    		22KG±1KG

    Standard color of fiber and tube
    The color of the individual fibers, shall be in accordance with the table as below:

    Standard Colour Identification
    NO. 1
    Color
    		Blue


    Out sheath is black.
    7.  Cable Mechanical characteristic

    Items
    		Description
    Installation Temperature range
    		-20--+60℃
    Operation and transport temperature
    		-40-+70℃
    Min Bending Radius(mm)
    		Long term
    		15D
    short term
    		30D
    Allowable Tensile Strength(N)
    		Long term
    		300
    short term
    		600
    Crush Load (N/100mm)
    		Long term
    		1000
    short term
    		2200
