Home ／ Fiber Optic Cables ／ FTTH Cable ／ Flat type drop cable with messenger wire, 1000m/drum

❤ Add to collection
Flat type drop cable with messenger wire, 1000m/drum
- Price： U.S.＄25.70-80.00

  List price： U.S.＄0.00

  MemberPrice：
  Vip： U.S.＄25.70-80.00

  Distribute
- Satisfaction：

  Sales： 0

  Review： 0
Weight：0.00KG
- Optical cable type：
- G657A1 G657A2
- Fiber count：
- 1C 2C 4C 8C
- Quantity：
- (Inventory: 19199808)
- Add to cart

  Buy now

Product parameters

Description

Cable Description

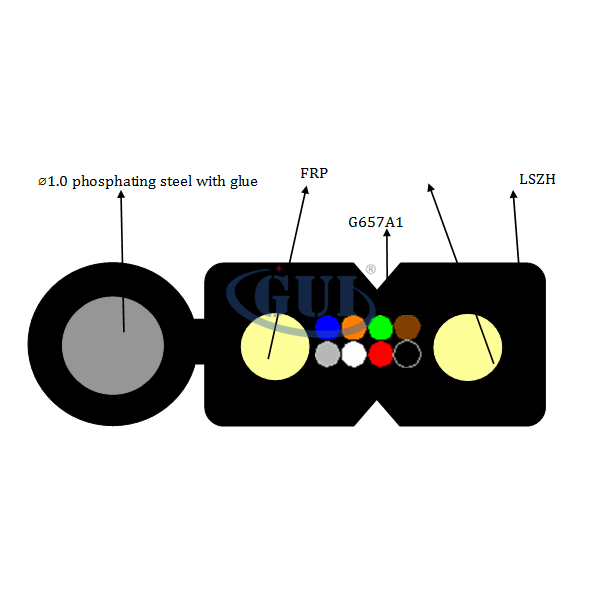

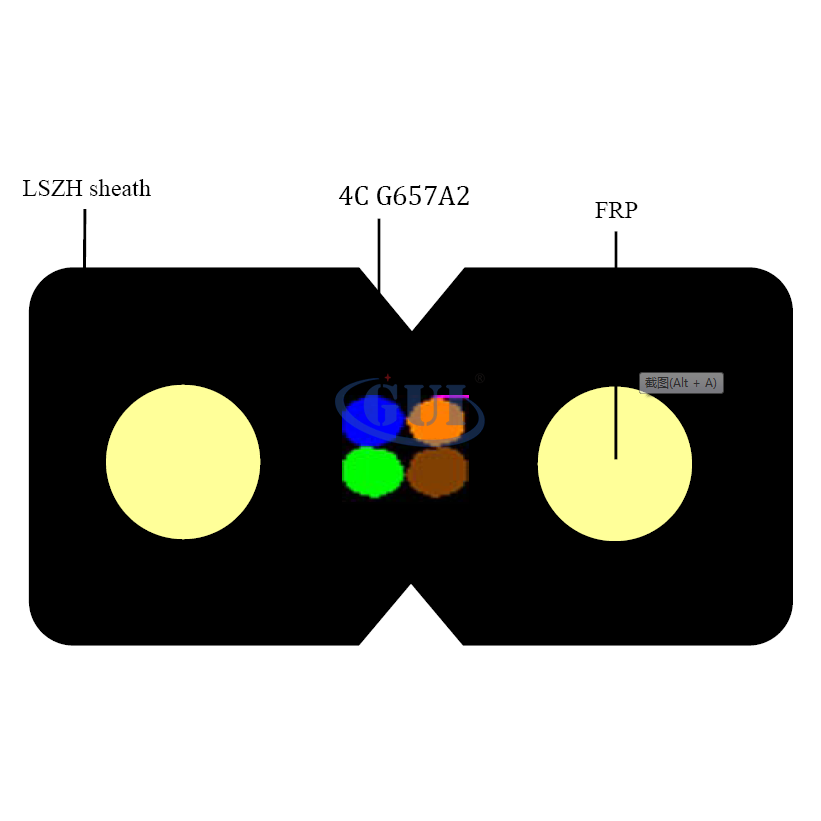

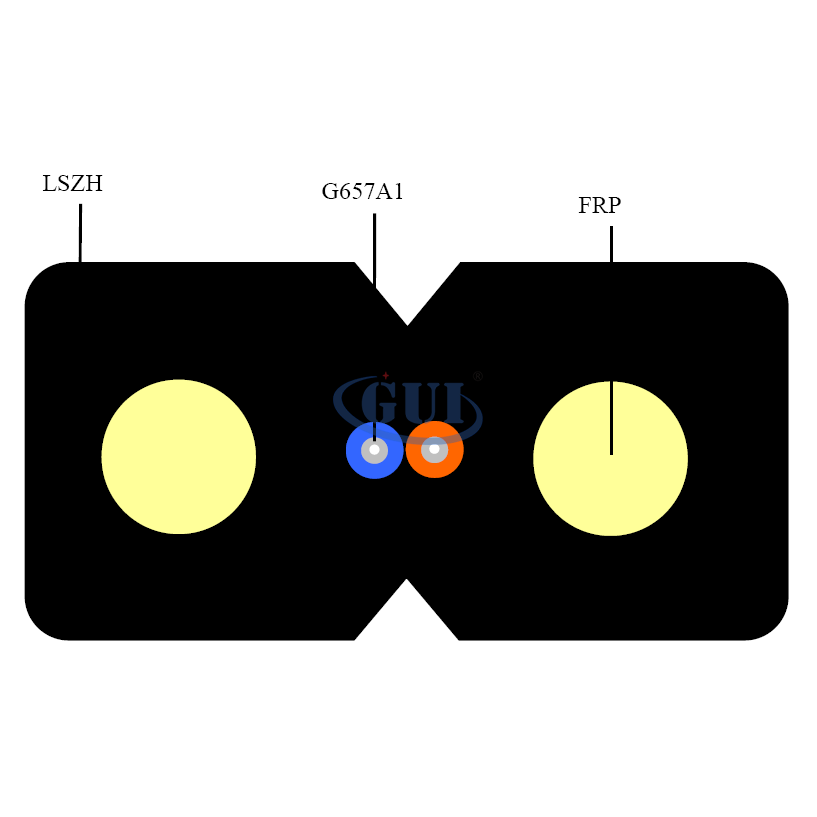

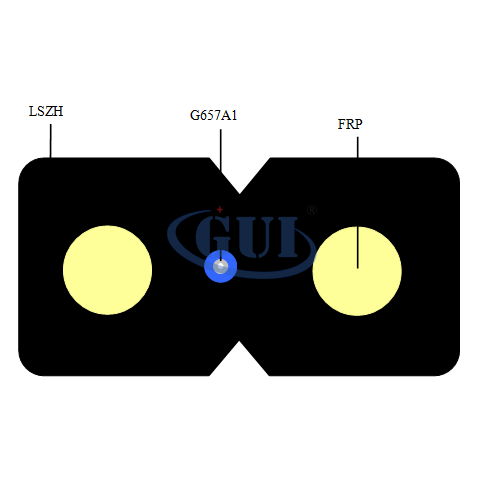

FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit id positioned in the center. Two parallel strength member are placed at the two sides , then, the cable is completed with a black HDPE /LSZH sheath.

Cable construction details

Items		Description
Number of fiber		1cores or 2cores
Fiber type		G657A1
Strength member	material	steel wire/FRP/KFRP
	diameter	2*(0.5~0.8)mm
Outer sheath	material	LSZH
	diameter	1.8±0.2mm
Cable size (Height * width)		3.0(±0.1) mm ×2.0 (±0.2)mm
Cable sheath thickness		Max.0.8mm/Min.0.4mm
Cable weight		8.5KG±1KG

Cable Mechanical characteristic

Items		Description
Installation Temperature range		-20--+60℃
Operation and transport temperature		-40-+70℃
Min Bending Radius(mm)	Long term	10D
Min Bending Radius(mm)	short term	20D
Allowable Tensile Strength(N)	Long term	40
Allowable Tensile Strength(N)	short term	80
Crush Load (N/100mm)	Long term	500
Crush Load (N/100mm)	short term	1000
