Home ／ Fiber Optic Splitter ／ PLC Splitter ／ ABS Box Type ／ 2x8 PLC Splitter, ABS type, Singlemode
  • 2x8 PLC Splitter, ABS type, Singlemode

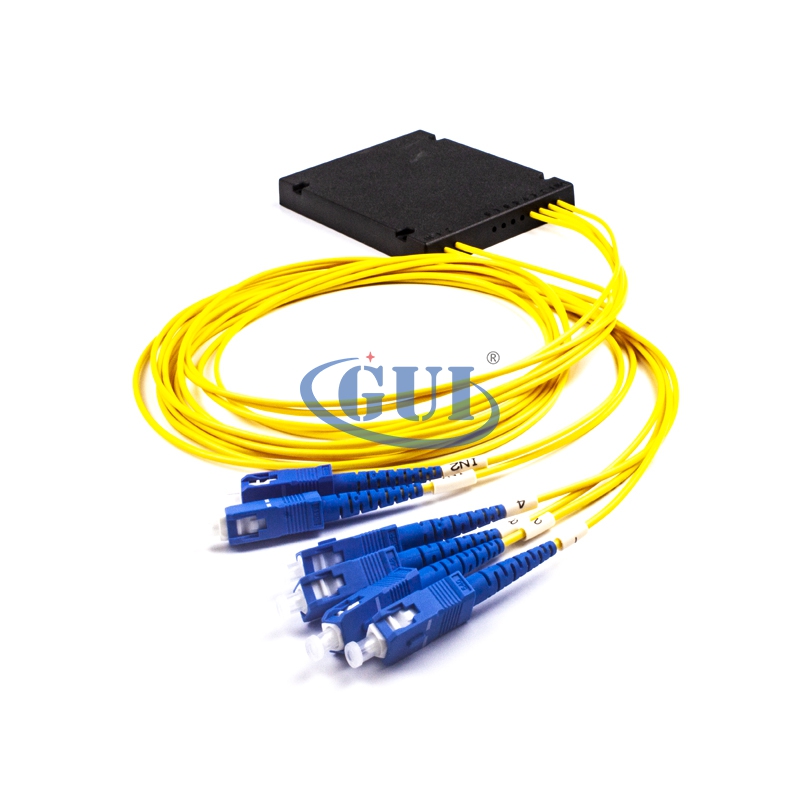

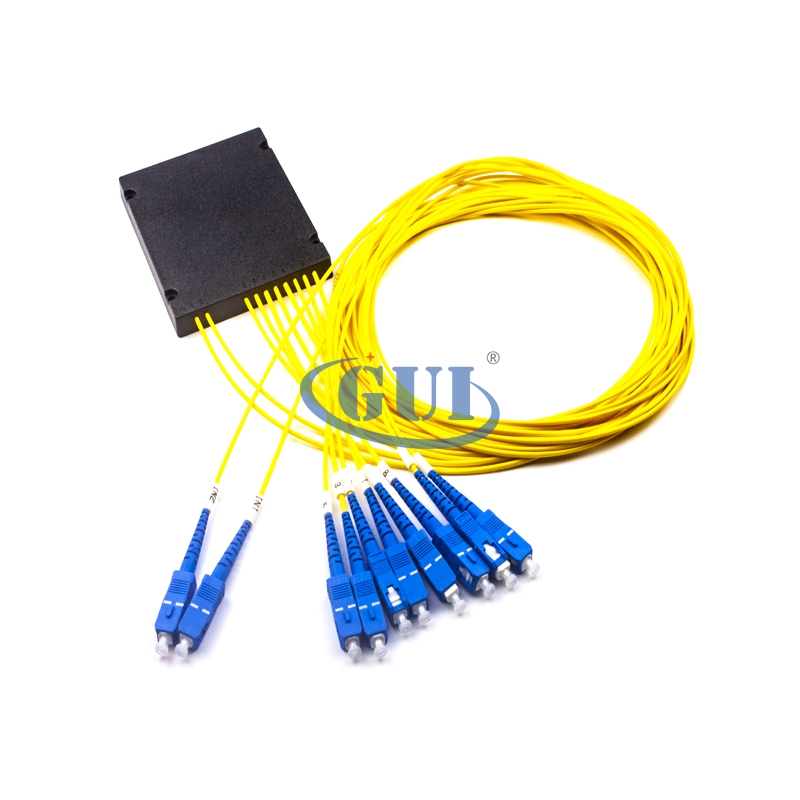

    2x8 PLC Splitter, ABS type, Singlemode
    2x8 PLC Splitter, ABS type, Singlemode
    2x8 PLC Splitter, ABS type, Singlemode
    2x8 PLC Splitter, ABS type, Singlemode
    2x8 PLC Splitter, ABS type, Singlemode
    ❤ Add to collection

  • 2x8 PLC Splitter, ABS type, Singlemode

    ABS Box Type
    2X8
    • U.S.＄4.00-5.90
      U.S.＄0.00
      U.S.＄4.00-5.90

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.00KG
    • Quantity：
    • (Inventory: 1999980)
Product parameters
  • Packing tye:ABS Box Type
  • Parameter:2X8
Description

Introduction of Fiber Optic PLC Splitter
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. Blockless PLC splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It's mainly used for various connection and distribution boxes or network cabinets.


Features of PLC splitter
• Low insertion loss
• low polarization dependent loss
• low back reflection
• Wide Operating Wavelength: 1260~1650nm
• High Reliability and Stability

Specifications

Parameter
2X8
Fiber Type
G.657A
Operating Wavelength(nm)
1260～1650
Insertion Loss(dB)
Typical
10.2
Max
10.7
 Loss Uniformity (dB)
Max
1.0
 Return Loss (dB)
Min 55
 PDL (dB)
Max
0.3
 Directivity (dB)
Min 55
Wavelength Dependent Loss(dB)
Max 0.6
Operating Temperature (°C)
-40~+85
Storage Temperature (°C)
-40~+85


· Above is the parameters for Blockless Fiber PLC Splitter without connectors.
· Within connectors, the insertion loss will be 0.2dB higher.
