Home ／ Fiber Optic Cables ／ CPRI Cable ／ Uniboot NSN Connector
  • Uniboot NSN Connector
    Uniboot NSN Connector
    Uniboot NSN Connector
    Uniboot NSN Connector
    Uniboot NSN Connector
    Uniboot NSN Connector
    ❤ Add to collection

  • Uniboot NSN Connector

    Uniboot NSN Connecto
    10m,15m,20m,25m,30m,35m,40m,45m,50m,55m,60m,65m,70m,75m,80m,90m,100m
    Armored cable,non-armoured
    • U.S.＄7.40-47.70
      U.S.＄0.00
      U.S.＄7.40-47.70

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.00KG
    • Quantity：
    • (Inventory: 1151988480)
Product parameters
  • Connector type:Uniboot NSN Connecto
  • length:10m/ 15m/ 20m/ 25m/ 30m/ 35m/ 40m/ 45m/ 50m/ 55m/ 60m/ 65m/ 70m/ 75m/ 80m/ 90m/ 100m
  • Optical cable type:Armored cable/ non-armoured
Description

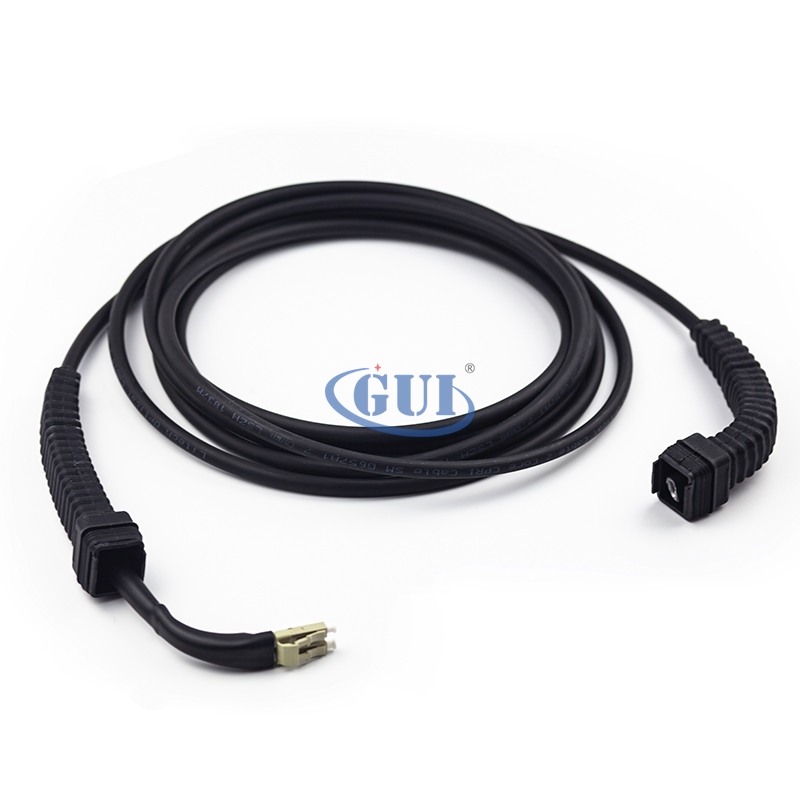

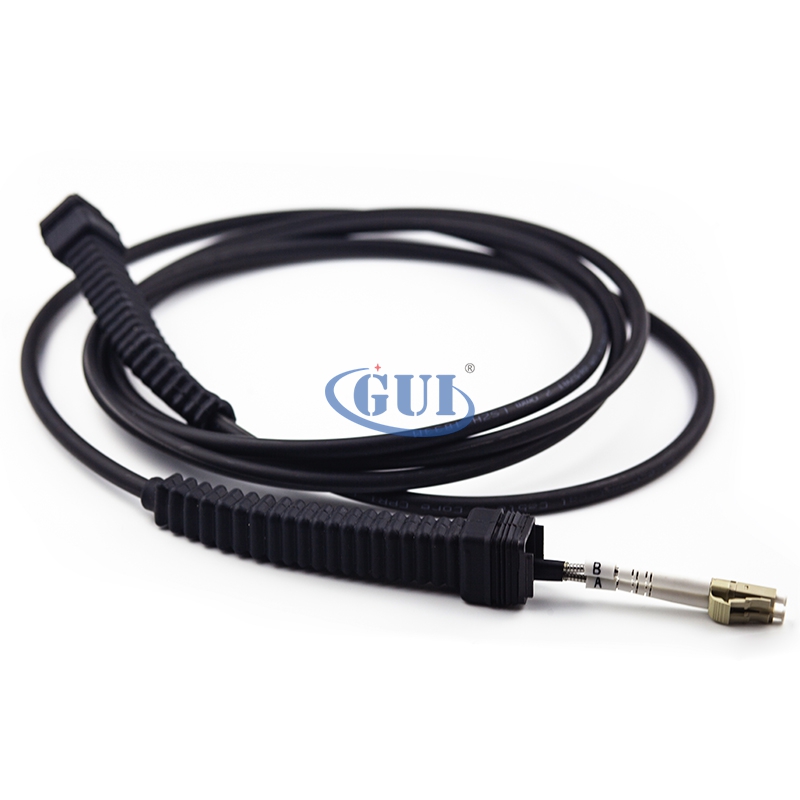

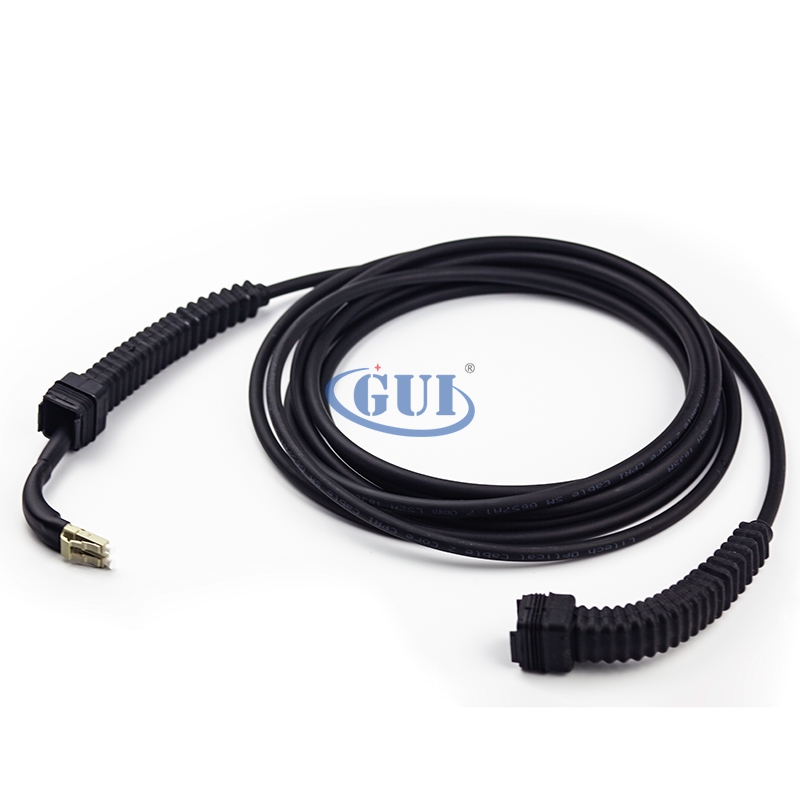

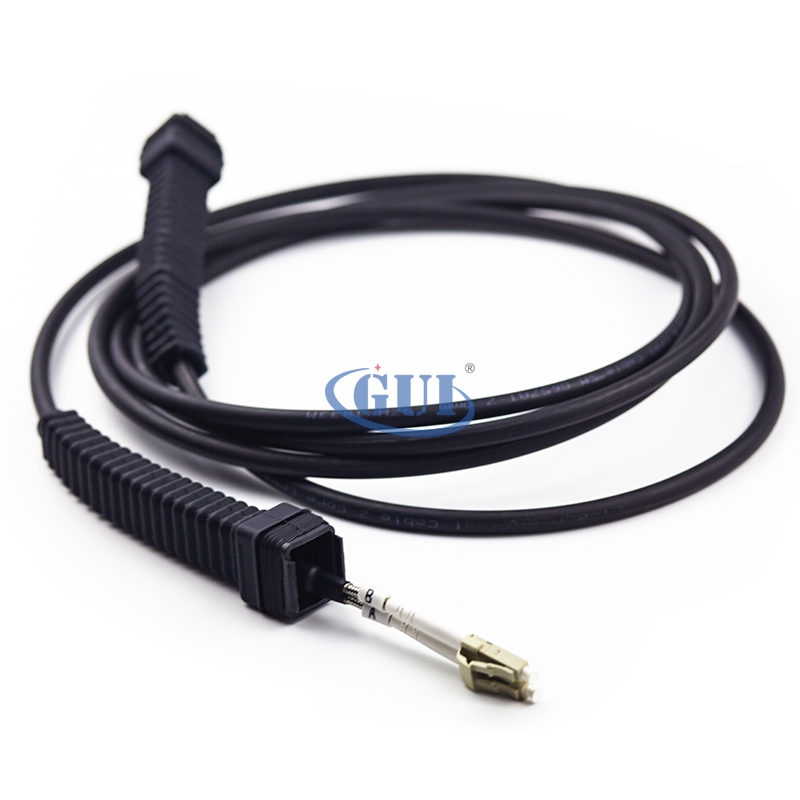

NSN Boot CPRI Optic Patch Cord Duplex LC Fiber Cable FTTA
NSN boot LC  fiber optic FTTA outdoor patch cord, compatible with Nokia's FullAXS-LC waterproof connector for latest and next-generation mobile communication systems(Such as UMTS, GSM, CMDA2000, TD-SCDMA, WiMAX, LTE and so on.) deploy fiber-optic feeders to link the telecom tower base station with the remote unit at the antenna mast.
Duplex tight-buffer fiber + central loose tube/ armoured steel tube + kevlar + OD 5.0mm / 7.0mm jacket cable, connected with NSN boot LC  DX connector.
ssembly Performance:
Item
Data
Insertion Loss
 ≤0.3dB
Return Loss
 SM/UPC≥50dB,SM/APC≥60dB,MM≥35dB
Mechanical life
 500cycles
Working temperature
 -40°C~+70°C
Storage temperature
 -40°C~+70°C
Operating temperature
 -10°C~+50°C
Protection Level
IP67
Tensile Data
 Tensile between junction and fiber cable≥100N
Authentication
 Meet with RoHS
